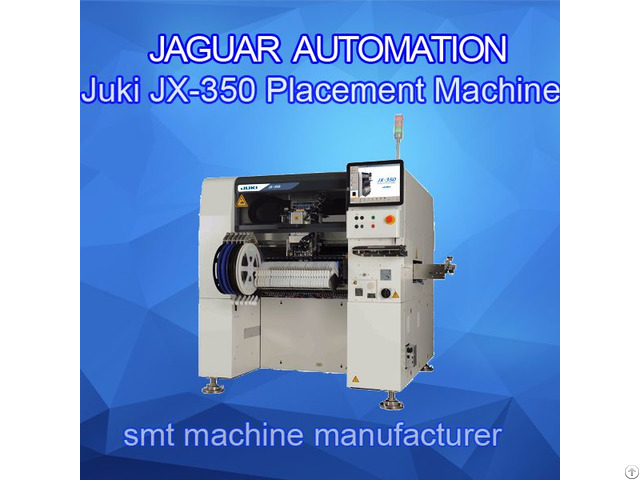

Juki Jx 350 High Speed Smt Pick And Place Machine - China
price: 10000.00 Dollar US$
Specification Model High-Speed Modular Mounter High-Speed Modular Mounter Item JX-350 FX-3RAXL Board size L size (410 × 360mm) - — L-Wide size (510 × 360mm) - — XL size (610 × 560mm) — Applicability to long PWB 800 × 360mm 800 × 560mm Component height 6mm Component size Laser recognition 0402 (01005) ~ 33.5mm Placement speed (chip) Optimum 0.040sec.
/chip (90, 000CPH) IPC9850 66, 000CPH Placement accuracy Laser recognition ±0.05mm (±3) Component loading quantity Max.
240 in case of 8mm tape (on a Electric double tape feeder) Power supply 200 to 415 VAC, 3-phase Apparent power 7.5kVA / 8.5kVA Operating air pressure 0.5 ±0.05MPa Air consumption Max.
150L / min Machine dimensions L size 2, 650 × 1, 650 × 1, 530mm (W×D×H) L-Wide size 2, 880 × 1, 650 × 1, 530mm XL size 2, 880 × 1, 850 × 1, 530mm Mass (approximately) L, L-Wide size 3, 500kg XL size 3, 750kg 1 : L-Wide size, Applicability to long PWB is optional.
2 : This speed does not apply to XL board size.
3 : With mechanical feeder bank 4 : With electoric feeder bank 5 : Height described is for conveyor height 900mm
Company Contact:
- Phone: 13626197803
- Address: Building B,Fuda Industrial Zone,National Highway 107,Shajing,Shenzhen,PRC, SHENZHEN , guangdong , China
- Email:
- Website: http://www.jaguar-ele.com
Published date: December 22, 2017
- Business Description: Were specialized in SMT field for over 10 years with the good quality and pretty competitive price, and our main products include:
-Reflow oven
-AOI, X-ray, SPI
-Pick and place machine
-Wave soldering machine
-Loader and unloader, conveyor and etc.
