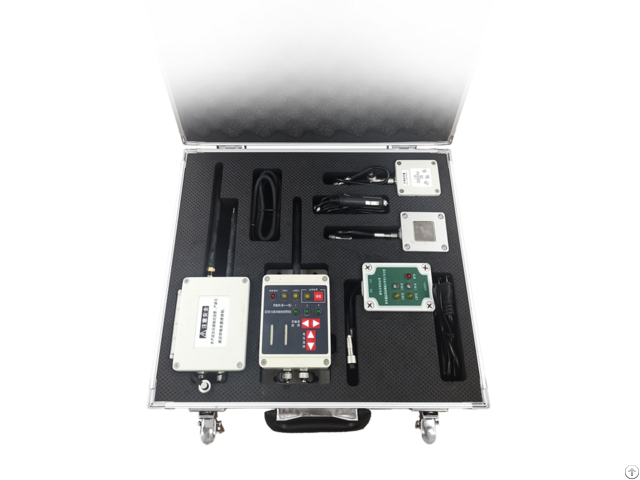

Electric Shock Warning Devices For Crane - China

Electrical wiring grade 10KV~500KV

Rated frequency 50Hz

Detection mode High-voltage electromagnetism induction

Alarm Mode Driving room voice alarm

Communication Mode 2.4G

2.4G Communication distance 200M

Working Voltage DC12V(Vehicle power or lithium battery)

Host Disspation 0.6~0.8W

Working Temperature -40°C~80°C

Ambient Humidity 0~95°C(Non-condensing)

Service Life 5~8 Years

Ingress Protection IP67

Weight 2.5KGS 1 - Front-end detection unit sets a voltage grade and distance, when it detects a high-voltage signal, which will pass back the signal to the early warning host.

2.2.4G wireless communication mode, barrier-free distance≥200M

3 - Wide range of use, support 10KV, 35KV, 110KV, 220KV or above voltage grade.

4 - Host alarms after receiving the signal, and reminds the operation person don't close to the dangerous high voltage by making a voice.

5 - Easy Installation.

Device could be absorbed on crane by magnets or be fixed by iron wires.

6 - Could be used on different vehicles repeatly.
