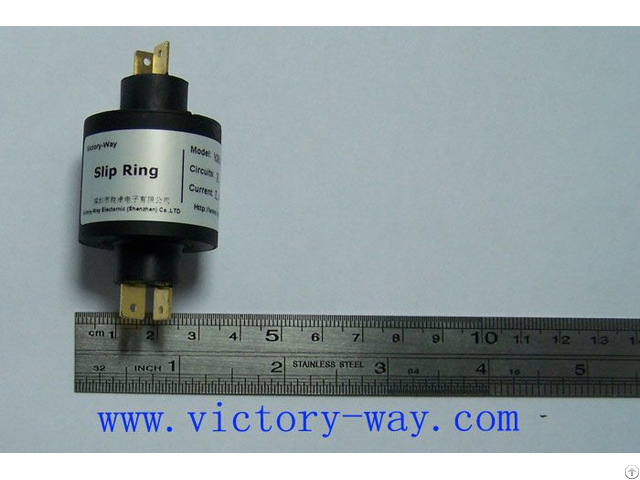

Double Channels High Current Slip Ring In Rotary Tables Test Equipment Or Cable Reels - China

The H series slip rings are compact, cost effective, mercury free, designed for industrial manufacturing.

Standard H2 has two rings, each is able to carry 7 amps.

H series slip rings overcome mercury slip ring's disadvantages of use on environment-demanding, and not environmental protection.

Advanced technology and reliable structure, maximum utilization of contact materials realize the highest performance but low cost.

They are best applicable in the food and packaging industries.

Standard terminals fit to quickly install.

you can customize for2A, 14A, 20A.

A.

)Specification:

Voltage: 240V AC/DC Current Rating : 2, 7, 10, 20A/Ring Speed : 400PRM Insulation Resistance: 1000M?@500VDC Dielectric Strength: AC 600V@60Hz, 60S Electrical Noise: 10 milliohms MAX @5rpm, 50milliamps, 6V DC Contact Material: Precious metal Operate Temp: -20℃～+80℃ Storage Temp: -30℃～+90℃ B.

)Feature:

Mercury free;

Reliable & rotational connections for power, signal and data transmission;

Speeds up to 400rpm;

Fast mounting.

C.

)Application:

Rotary tables, test equipments, cable reels;

Robots, processing equipments and rotary sensors;

Heated rollers;

Medical equipments;

Food manufacturing machines;

Packaging equipments.

D.

)Option:

Wider range of temperature;

Flange for installation;

Layout & size of terminals can be customized.
