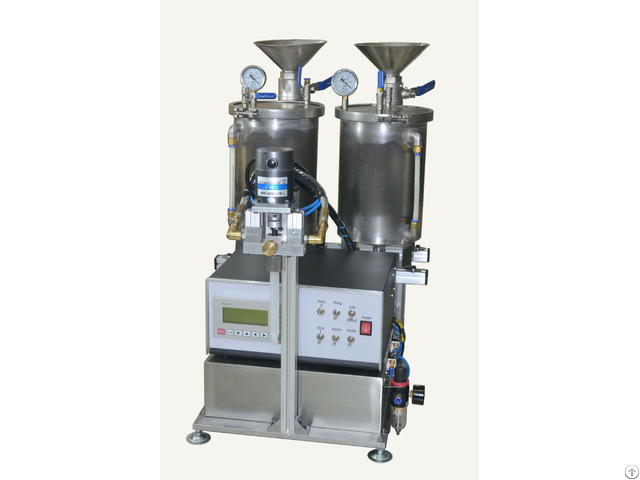

Bk524a Gear Pump Meter Mix System - China

BK526A gear pump system is a bench-top, adjustable ratio, meter & mix machine for dispensing two part materials.

The system assists the accurate and consistent processing of materials with high mix ratios or vastly differing viscosities.

It provides perfect solution to many dispensing applications such as potting, bonding, encapsulating, molding, cartridge filling and other projects where two-part materials are used.

Features

1 - Precision metering of the gear pump 2 - Digital entry of the speed of the step motor to adjust the ratio of two-part materials

3 - Adjustable mix ratio from 1: 1 to 10: 1

4 - Dynamic mix provide efficient processing of material with high mix ratios or vastly differing viscosities

5 - The advanced design of the piston valve provide positive cutoff.

6 - Ideal for automation integration

7 - Low cost

Specification

Mix mode Dynamic mix

Metering pump Gear pump

Reservoir size 10L*10L Demensions(LxWxH) 950mm*600mm*800mm

Power 1 Phase 220V 1000W

Available Options

5 or 20 liter reservoir sizes

Hand held mixer valve

Level sensing with audible or visual alarm

Motor driven agitation to material reservoirs

Static mixing

Mobile trolley unit

Heating unit to reserviors

Vacuum degassing to material reservoirs

Company Contact:

• Posted By: Bykan Precision Dispensing Technology

• Phone: 0086-20-84084826

• Address: 3F, No.8 Taisha Rd,Haizhu District,Guanzh, Guangzhou , China

• Email:

• Website: http://www.bykan.com

• Business Description: Bykan is the engineering based company focused on the precision fluid dispensing technology for alpplying controlled amounts of adhesive, sealant, lubricants and other assembly fluid used in almost every production.

  Bykan product line include the dispenser, dispense valve, syringe barrels, needle, mixer, two component mixing system, pressure tank, UV light.

  Bykan is committed to provide its higher performance but lower price products, on site process study for dispensing and specific design to meet the unique application need of the customers.
