5w Wide Voltage Input Dcdc Converters - China

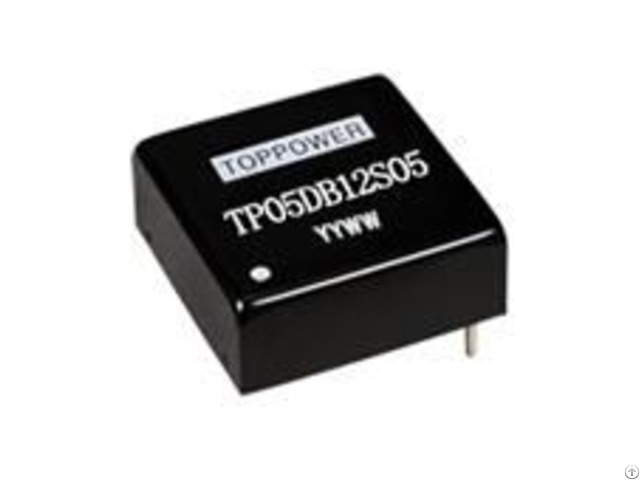

The rated output power of TP05DB converters is 5W, the outline dimensions is "25.4*25.4*11.2", 2: 1 and 4: 1 wide input voltage range, the voltage range is 4.5V-9V, 9V-18V, 18V-36V, 36V-72V, 9V-36V and 18V-72VDC.

The accuracy of the converter can reach ±1%, it can be widely used in telecommunications, railway transportation, instrument and etc.

Part Number Input Voltage Output

voltage(VDC) Voltage(VDC)

Rated Range values

TP05DB05S05 5(2: 1) 4.5-9 5

TP05DB12S03 12(2: 1) 9-18 3.3

TP05DB12S05 12(2: 1) 9-18 5

TP05DB12S12 12(2: 1) 9-18 12

TP05DB12S15 12(2: 1) 9-18 15

TP05DB12D05 12(2: 1) 9-18 ±5

TP05DB12D12 12(2: 1) 9-18 ±12

TP05DB12D15 12(2: 1) 9-18 ±15

TP05DB24S03 24(2: 1) 18-36 3.3

TP05DB24S05 24(2: 1) 18-36 5

TP05DB24S12 24(2: 1) 18-36 12

TP05DB24S15 24(2: 1) 18-36 15

TP05DB24D05 24(2: 1) 18-36 ±5

TP05DB24D12 24(2: 1) 18-36 ±12

TP05DB24D15 24(2: 1) 18-36 ±15

TP05DB48S03 48(2: 1) 36-72 3.3

TP05DB48S05 48(2: 1) 36-72 5

TP05DB48S12 48(2: 1) 36-72 12

TP05DB48S15 48(2: 1) 36-72 15

TP05DB48D05 48(2: 1) 36-72 ±5

TP05DB48D12 48(2: 1) 36-72 ±12

TP05DB48D15 48(2: 1) 36-72 ±15

TP05DB24S05W 24(4: 1) 9-36 5

TP05DB24S12W 24(4: 1) 9-36 12

TP05DB24S15W 24(4: 1) 9-36 15

TP05DB24D05W 24(4: 1) 9-36 ±5

TP05DB24D12W 24(4: 1) 9-36 ±12

TP05DB24D15W 24(4: 1) 9-36 ±15

TP05DB48S03W 48(4: 1) 18-72 3.3

TP05DB48S05W 48(4: 1) 18-72 5

TP05DB48S12W 48(4: 1) 18-72 12

TP05DB48S15W 48(4: 1) 18-72 15

TP05DB48D05W 48(4: 1) 18-72 ±5

TP05DB48D12W 48(4: 1) 18-72 ±12

TP05DB48D15W 48(4: 1) 18-72 ±15
