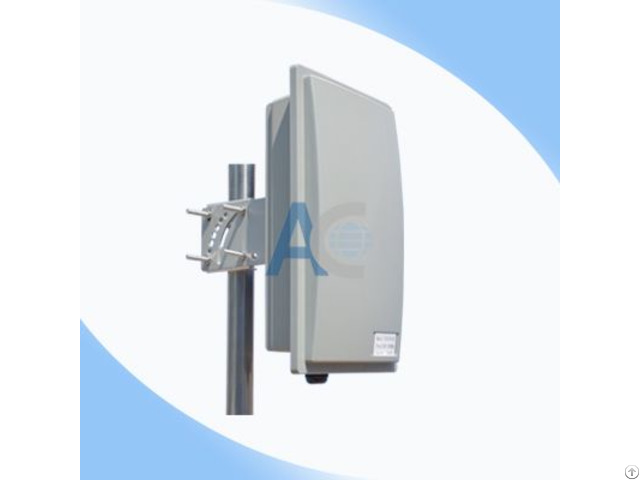

Wimax Panel Enclosure Outdoor Ptp Antenna - China
price: 30.00 Dollar US$
Electrical Frequency Range 3400-3600MHz
Band width 200MHz
F/B Ratio ＞28
Gain 18dBi
V.S.W.
R ≤1.5
Radiation Direction
Horizontal Beam width 60±5 Vertical Beam width 29±5 Polarization Vertical
Lightning Protection DC-Grounded
Maximum Input Power 50W
Impedance 50Ώ
Connector SMA Female
Antenna Radome Material ABS
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm Mechanical Dimensions 320x200x98mm Inner Space Of Enclosure 272×153×48mm Weight 2KG
Impedance -40℃ to+70℃
Rated Wind Velocity 241Km/h
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: July 1, 2017
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
