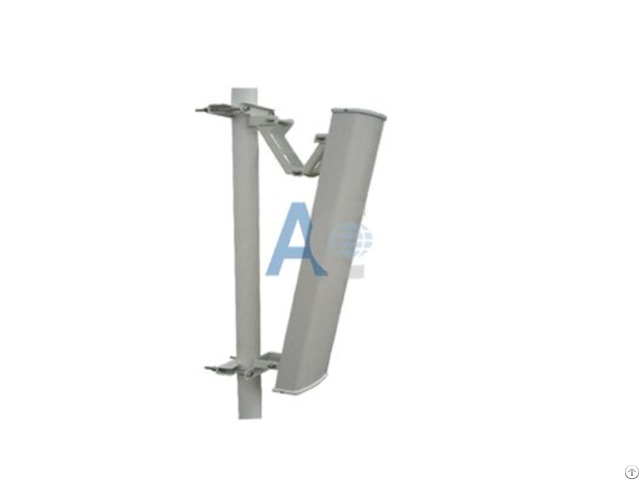

Outdoor Long Range Wireless 17dbi 65degree Antenna - China
price: 63.50 Dollar US$
P/N: AC-D24V17-65
Electrical Frequency Range 2400-2483MHz
Band width 83MHz
F/B Ratio ＞25dB
Gain 17dBi
V.S.W.
R ≤1.5
Radiation Direction
Horizontal Beam width 65°
Vertical Beam width 15°
Polarization Vertical Lightning Protection DC Grounded
Maximum Input Power 100W
Impedance 50Ώ
Connector N Female
Antenna Radome Material PVC
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm
Mechanical Antenna Dimension 720x120x60mm
Weight 2.5KG
Operating Temperature -40℃ to+80℃
Rated Wind Velocity 241Km/h RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: April 28, 2018
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
