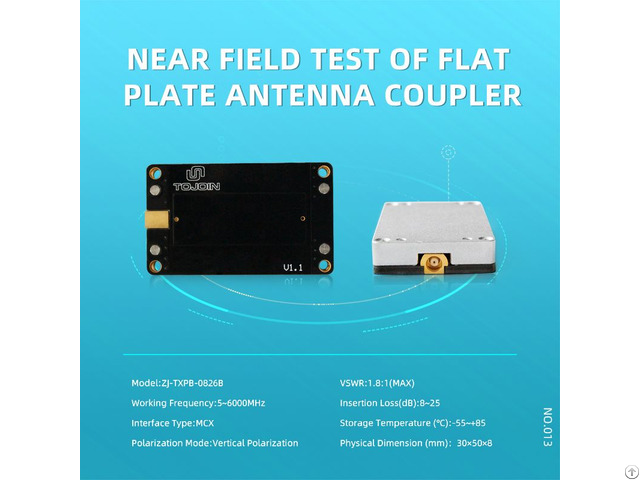

Near Field Test Of Flat Plate Antenna Coupler Small - China

Near Field Test of Flat Plate Antenna Coupler small for wifi power test.

Technical Parameter for your reference:

Parameter Min.

Typ.

Max.

Frequency Range (MHz) 5 — 6000

Insertion Loss (dB) 8 — 25

Polarization Mode — vertical polarization — VSWR — — 1.8

Input Impedance (Ω) — 50 — Connectors — MCX — Operating Temperature (°C) -45 normal temperature +70

Storage Temperature (°C) -55 — +85

Installation Mode — screw retention — Physical Dimension(mm) — 30*50*8 — Weight (g) — 25 —

Company Contact:

• Posted By: Zhongji Technology Group Co., Ltd

• Phone: 13823281261

• Address: Liutang Business Building A, No.21,Qianjin 2nd Road, Ban´an district, Shenzhen city, Guangdong Provi, shenzhen , guangzhou , China

• Email:

• Website: https://chbutc.com/

• Business Description: Our main products include: GNSS Multi-System Satellite Signal Simulator, GNSS Multi-System Satellite Signal Transponder, Ultra-Wideband Antenna Array Compact Range TEM Cell, EMC Shielding Box, EMC Shielding Room, Millimeter Wave Connector and Cable Assembly.

  We always act in accordance with the management idea of "Innovation drives Development, Quality casts Soul".

  We innovate continuously according to customers' requirements,while at the same time exceed customers' expectations.

  We have standardized and diversified products to save customers' testing costs.

  As well as this we have a variety of complementary products and automation system equipment that helps to solve the problem of complex product testing and model selection, thus saving the purchasing time of customers.

  The company has regarded quality as life for more than a decade, with the Certification of IS09001: 2015 International Quality Management System by CEPREI China and CE Certification.

  We possess a number of world advanced testing equipment E5071C, ROSH testing equipment, High-Low temperature test chamber, salt spray test and vibration test.
