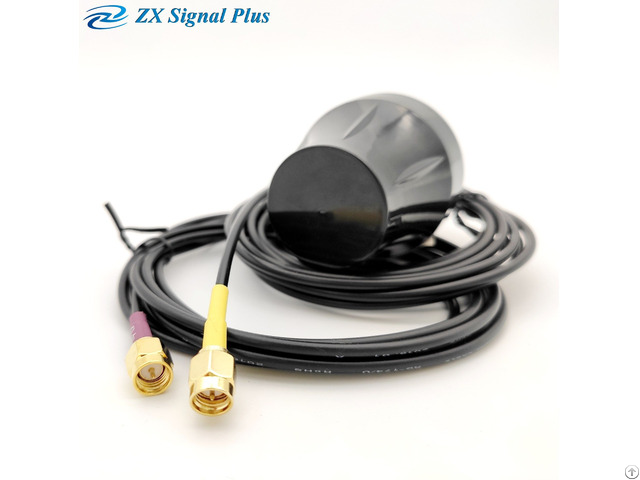

Lte Gps Combo Active Antenna With Sma Male Connector - China
price: 12.00 Dollar US$
1 - Working Environment Temperature：-40℃～+8 5℃ Humidity： 40﹪～95﹪ 2 - Storage Environment Temperature：-40℃～+8 5℃ Humidity： 40﹪～95﹪ 3．GPS+BDS/GLONASS specs NO Item Specifications 1 Range of Receiving Frequency 1575.42±1.023 1561.096±2.046 3 Band Width(MHz)(Retum Loss≤-10dB) ≥15 4 V.S.W.
R(in Center Frequency) ≤1.5 5 Gain (Zenith)(dBi typ) 3.0 6 Axial Ratio ≤5.0dB 7 Polarization Right-Handed Circular 8 Impedance(Ω ) 50 Amplifier characteristics Gain 28dB±2dB( LNA Gain) Noise figure <1.5dB
( LNA) Output VSWR <2 Output impedence 50Ω Passband Ripple ±1.0dB( LNA) 1dBcompression point output >-10dBm( LNA) Out of band rejection DC~1400MHz: 35dBc min 1400~1475MHz：30dBc min 1475~1525MHz：25dBc min 1625~1640MHz：30dBc min 1640~2000MHz：32dBc min 2000~3000MHz：20dBc min Prime power 3.3~5V Operating current ≤15mA LTE Antenna Characteristics NO Item Specifications Range of Receiving Frequency 698〜960Mhz 1710〜2700Mhz V.S.W.
R(in Center Frequency) ≤2.0 5 Gain (Zenith)(dBi typ) 2.0 Polarization Linear Impedance(Ω ) 50
Company Contact:
- Posted By: Signal Plus Technology co., Ltd
- Phone: 17717939521 Q
- Address: Room 605, Building 30, No.69, Guiqing Road, Shanghai , Shanghai , China
- Email:
- Website: https://www.zxsignal.com
Published date: December 15, 2020
- Business Description: We're the biggest antenna supplier in China.
Mainly wholesale and custom made for many years.
We are supplier of many companies like Belkin in USA/ Huawei /Xiaomi/and our government operationer.
