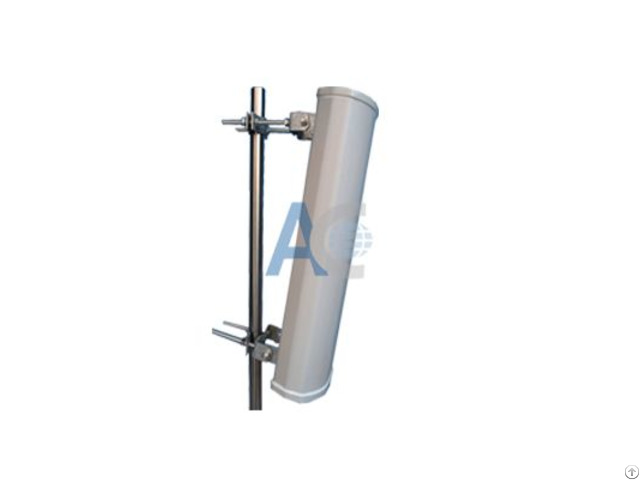

Long Range Signal Cover Gsm Sector Antenna - China
price: 158.00 Dollar US$
Electrical Frequency Range 800-960MHz
Band width 160MHz
F/B Ratio >25dB
Gain 12dBi
V.S.W.
R ≤1.5
Radiation Direction
Horizontal Beam width 120°
Vertical Beam width 15°
Polarization Vertical Lightning Protection DC Grounded
Maximum Input Power 200W
Impedance 50Ώ
Connector N Female
Antenna Radome Material ABS
Mount way Pole
Diameter of Installation Pole Ø30~Ø50mm
Mechanical Dimensions 1283x285x130mm
Weight 5.3KG
Operating Temperature -40℃ to+80℃
Rated Wind Velocity 60m/s
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: March 29, 2019
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
