Indoor Patch Wall Mount Booster Gsm Antenna - China

price: 8.00 Dollar US$

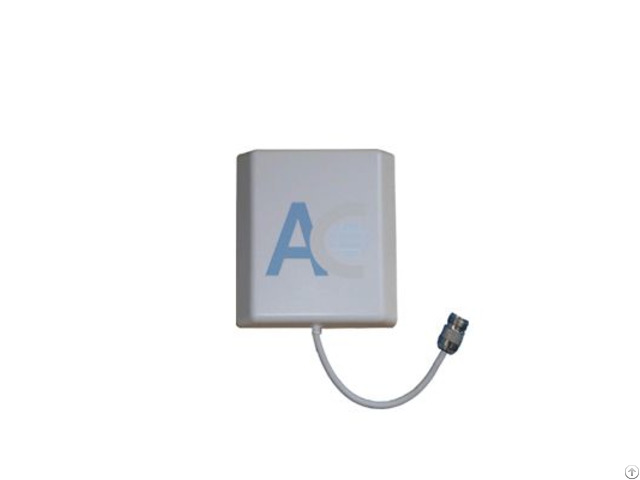

Indoor Patch Wall Mount Booster Gsm Antenna

Products Photos Catalog Indoor Patch Wall Photos Catalog

P/N: AC-DG-W06

Electrical Frequency Range 824-960/1710-1880MHz

Band width 136/170MHz

Gain 7dBi

V.S.W.

R ≤1.5

Radiation Direction

Horizontal Beam width 70°

Vertical Beam width 55°

Polarization Vertical or Horizontal

Maximum Input Power 50W

Impedance 50Ώ

Connector N Female

Cable Type RG58U

Cable Length 30cm

Antenna Radome Material ABS

Mount way Wall Mount

Mechanical Dimensions 140x120x40mm

Weight 500g

Operating Temperature -40℃ to+80℃

RoHS Compliant YES


Company Contact:


  • Phone: +86-757-87668779

  • Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China

  • Email: Email


Published date: April 28, 2018

  • Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
