High Voltage Dy10 90watt Co2 Laser Power Supply - China

DY-10 RECI CO2 laser power supply for 80W W2 1200 CO2 laser tube

Feature:

1 - This DY-10 laser power supply has open circuit protection function.

When protective earthing is good, the laser power supplycan be in open circuit status during short time.

This function can protect power supply when laser tube burst.

2 - This 80watt laser power supply is easy to be controlled, it is suitable to High or Low level signal.

The TTL level can control start or stop of laser output.

While the power supply has emergency protection switch which can indicate water through and ventilation.

3 - The laser output power of this DY10 CO2 power supply can be adjusted by 0-5V analog signal or PWM signal.

4 - Aging test: Each laser power supply must pass this test which is taken at 60 degree centigrade for 12 hours in full load status.

And the power supply must start and stop at each 7 seconds for 500 times.

In this way we can ensure the laser power supply is qualified.

5 - This DY 10 laser power supply adopts zero current and half bridge soft switch circuit, it makes the power supply have high efficiency and quick response speed.

Thus it is easy to match with REC W1 or W2 80W CO2 laser tube.

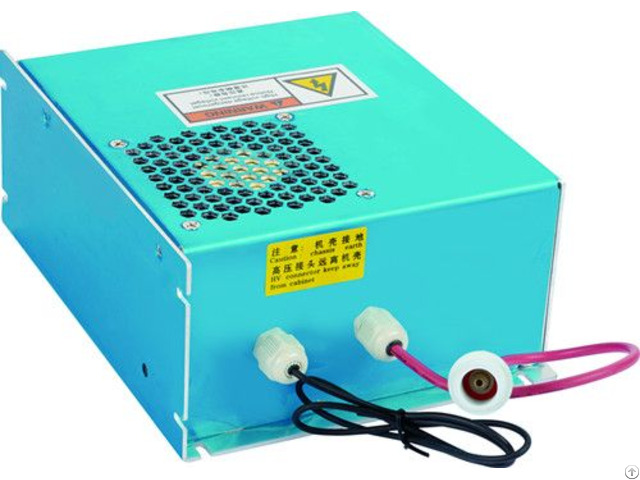

6 - This DY-10 80W CO2 laser power supply uses ordinary H/L/P/G/IN/5V interface as laser control signal and it uses blue aluminum case.

Specification:

Input AC Voltage AC220V or AC110V

Input DC Voltage DC 300V or DC150V

Input AC Frequency 47-440Hz

Max.

Output Voltage 35KV

Max.

Output Current 24mA(Depends on Laser tube)

Efficiency 91%

Over Current Protection 130% of Max.

Current

Open circuit Protection Yes (For short time)

Cooling Fan Cooling

Voltage Range of High Level Control Not Less Than3V

Voltage Range of Low Level Control Not More Than0.8V

Working Temperature -30 - +65 Degree Centigrade

Humidity 20-85%RH(No Dew)

Withstand

Voltage Input-Output AC1500V/MinNot More Than10mA Input-Shell AC1500V/MinNot More Than10mA Output-Shell Connected

Insulation Not Less Than 50MOHM(DC500V)

Leakage Current Not Less Than 1mA(AC220V)Not More Than 0.5 mA(AC110V)

Shock Resistance Amplitude: 0.5mm, Frequecy: 10-55Hz, 3D Dretion: 2 Hours

MTBF Not Less Than30, 000hours

Full Load 60 Degree Centigrade test 12Hours

7 Seconds Start/Stop Test 500 Times

Dimension(LXWXH) 197x157x80mm
