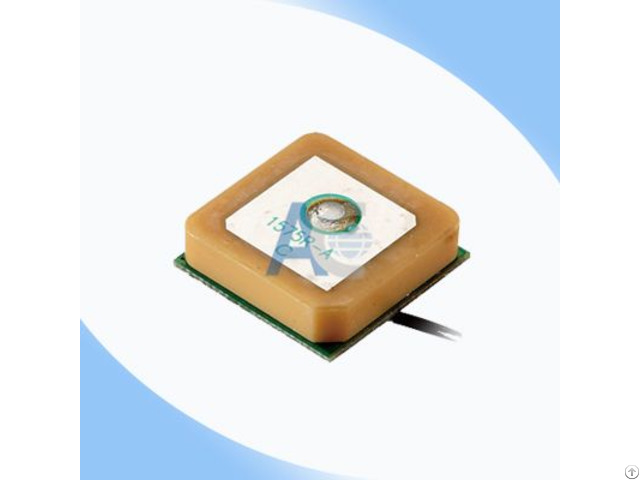

Gps Internal Pcb 18x18mm Ceramic Antenna - China
price: 2.00 Dollar US$
Electrical Antenna Frequency Range 1575.42MHZ±3 MHz
Bandwidth(MHz) ±5 Gain 5dBic
Polarization Type RHCP
V.S.W.
R 1.5: 1
Impedance 50Ω
Peak Gain ＞3dBic Based on 7×7cm ground plane Dimensions 18×18×7mm LNA LNA Gain 16±2dB
Noise Figure 1.5dB
DC Voltage 2.2-5.0V
DC current 5-15mA
V.S.W.
R ＜2.0
Mechanical Mechanical Cable 1.13
Length 100MM
Connector U.
FL
Environmental Antenna Radome Material Ceramics
Operating Temperature -40℃~+85℃
Relative Humidity Up to 75%
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Weight 8g
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: July 1, 2017
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
