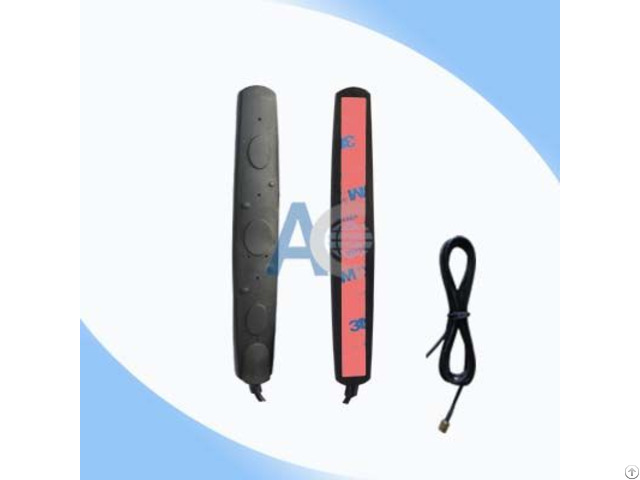

3m Sticker Patch 3g Waterproof Car Antenna - China
price: 2.50 Dollar US$
Electrical Frequency Range 824-960/1710-2170MHz
Band width 136/460MHz
Gain 3dBi
V.S.W.
R ≤2.0
Radiation Omni Direction
Polarization Vertical or Horizontal Lightning Protection -
Maximum Input Power 50W
Impedance 50Ώ
Connector SMA male
Cable Type RG174
Cable Length 3M
Antenna Radome Material PVC
Mount way stick
Mechanical Dimensions 161×20mm
Weight 52g
Operating Temperature -40℃ to+70℃
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: July 1, 2017
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
