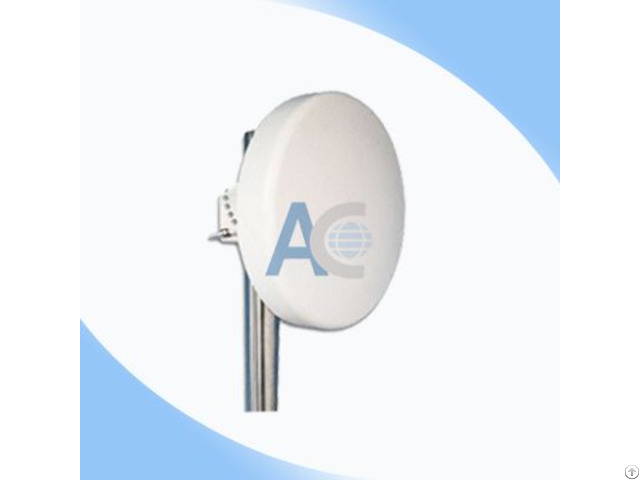

18dbi 5ghz Backfire Outdoor Directional Antenna - China
price: 20.00 Dollar US$
Electrical Frequency Range 5725-5850MHz
Band width 125MHz
F/B Ratio ≥30 Gain 18dBi
V.S.W.
R ≤1.5
Radiation Directional
Horizontal Beam width 24º
Vertical Beam width 26º
Polarization Vertical
Lightning Protection DC Grounded
Maximum Input Power 50W
Impedance 50Ώ
Connector SMA Male
Antenna Radome Material ABS
Mount way Pole
Diameter of Installation Pole Ф40 to Ф50 Mechanical Dimensions Φ250 mm Weight 1.3KG
Operating Temperature -40℃ to+70℃
Rated Wind Velocity 241km/h
RoHS Compliant YES
Company Contact:
- Posted By: Asian Creation Communication CO.,LTD
- Phone: +86-757-87668779
- Address: #12 Xing Ye 5 Road Nan Feng Da Dao,Sanshui, Foshan , Guangdong , China
- Email:
- Website: https://www.acantenna.com
Published date: July 1, 2017
- Business Description: antenna manufacturer, wifi antenna, 4g antenna, mimo antenna, 3g antenna, gsm antenna, gps antenna, 433mhz/315mhz antenna, pigtail cable and so on.
