  • Single Hole Tubing Edm Brass Tube Electrode Channel - China

    price: contact company for price

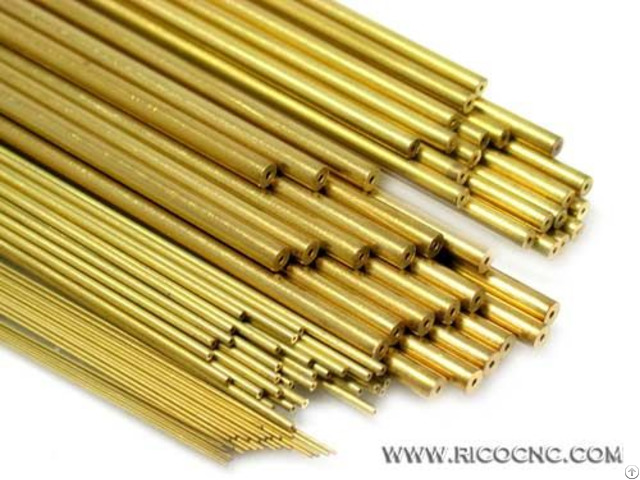

    Single Hole Tubing EDM Brass Tube Electrode Single Channel for Small Hole Drilling EDM

    We are specialized in 4 main categories of EDM Tubing: Brass Electrodes Tube, Copper Electrodes Tube, Single Hole Tubing, Multi-Channel Tubing.

    This EDM electrode tube is the single hole brass tube for small hole popping drilling EDM.

    EDM Brass Tube Features:

    Outer Diameter: 0.2MM, 0.3MM, 0.4MM, 0.5MM, 0.6MM, 0.7MM, 0.8MM, 0.9MM ……2.9MM, 3.0MM

    Material: Brass

    Composition: Cu: 63.5%~68.0%, Zinc: 32%~36%, others

    Impurities: <=0.03%

    Conductivity: 95 (%IACS)

    Color: Yellow

    Brass Tube Electrodes Applications: EDM Electrode Tube is applicable to high speed electric spark small hole popping EDM machines, especially for deep and small holes electric discharge drilling spark erosion.

    When Should I Use Brass Electrodes?

    When speed is important.

    Brass electrodes have a faster wear rate than copper electrodes, which results in a faster drill speed when the target material is not tough.

    When the workpiece or part you are machining is made up of relatively soft materials such as tool, stainless, or mild steel.

    When Should I Not Use Brass Electrodes?

    When the workpiece or part you are machining is made up of materials such as carbide, tungsten or a mixture of tungsten carbide, brass electrodes will not be as efficient as copper electrodes, due to its chemical composition and disintegration rate.

    When you are EDM drilling through exotic materials such as carbon-carbon, sintered diamond, or silicon/silicon carbide, you should use brass tube electrode.

    We can also supply you other edm consumables spare parts and cnc spare parts.

    Payment can be made by Western Union, Paypal, T/T.

    Welcome your inquiry!

    brass tube edm, edm drill brass tube, Brass Tube Single Hole, Electrode Brass Tube, EDM Brass Tube, brass tube electrodes, brass edm electrode, Single Hole Tubing, Brass Tube Electrode single hole, Tubing Electrodes, Single Channel brass tubes
