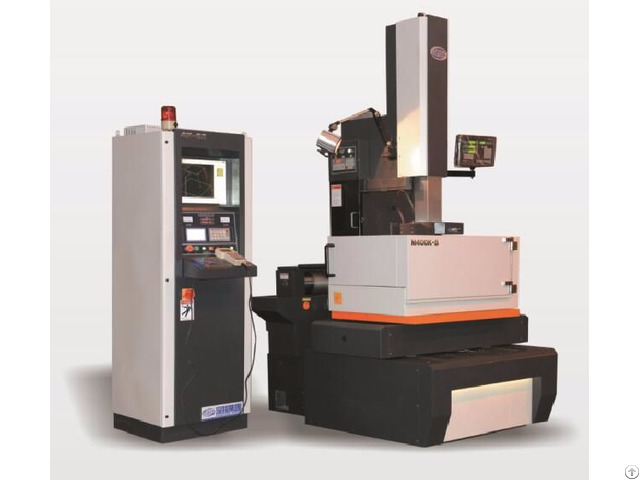

Mc350 Cnc Wire Cut Edm - China

The MC series machine can cutting stably multiple times without wire guide.

It's real intelligent machine no need operational skills.

X, Y, U, V axis cooperative control.

And the axises choose THK precision linear guide which made in Japan and ultra-quiet design.

Achieve the low noise, high precision machining, and high reliability.

Automations

1 - Wire tension automatic control, No need to tighten the wire manually.

Constant tension and stable accuracy.

2 - the Z axis can move by automatic.

No need to remove the wire.

3 - Intelligent setting the cut parameter, operation is handy.

4 - Wire diameter automation control.

Reduction the accuracy error which caused by the change of the wire diameter.

the important precision index.

(with out wire guider!!)

1 - Roughness: Ra equal or less than 1.0 um/30000 mm2.

2 - Accuracy of the machining: equal or less than plus-minus 0.005 mm.

3 - Conformance deviation: equal or less than 0.005 mm/30pcs.

4 - Longitudinal dimension deviation: equal or less than 0.005/100 mm.

Machine Type MC350

Table size 540X730 mm

Table travel 350X400 mm UV axis travel plus-minus 25 mm Work piece max.

Thickness 400 mm Work piece max.

Weight 450 kg Machine weigh 1700 KG Max.

Taper cutting plus-minus 6 degree Pulse equivalent 0.001 mm Wire speed 1-15 m/s (speed adjustment by frequency conversion)

Overall processing speed 60 mm2/min

the fast processing speed 120 mm2/min the best Roughness Ra 1.0

Wire diameter 0.10-0.20 Composite machining accuracy 0.01 mm Drive type AC servo motor

Guide Japanese THK linear guide

X Y axis screw Ball screw made in China

Bearing Japanese NSK bearing

Measurement system Electronic ruler Volume of the tank 100 L Tank size 1080X620X630 mm Wire cylinder stroke 250 mm

Company Contact:

• Posted By: Shenyang CNC Machinery Co., Ltd.

• Phone: +8615982184426

• Address: No.106 Liangshuijing Road,, Zigong , sichuan , China

• Email:

• Business Description: Sichuan Shenyang CNC Machinery Co., Ltd. Specializes in manufacturing and selling medium speed molybdenum wire cut machines.

  CNC medium speed molybdenum wire cut EDM is the special local products in China, which is widely used in mould industry.

  It is different from CNC slow speed brass wire cut EDM which is high price in other countries.

  The price of low speed brass wire cut EDM is about ten times higher than medium speed molybdenum wire cut EDM.

  but on the quality, medium speed molybdenum wire cut EDM can also satisfy the wide customers' demands well.

  My company Independent research and development of closed loop wire tension control system make the operation easier and more stable quality.

  It can save manpower cost and improve production efficiency for customers.

  Our machine tools account for 50% of the market in the highly competitive Southwest China market.

  We supply die cutting machines for Honda, Ford and other customers in China.

  And also export to aircraft company in Egypt and OEM for Taiwan company.

  We are making great efforts to develop the international market and look forward to working with you.
