Mr R300 High Quality Industrial Plate Beveling Machine With Long Service Life - China

MR-R300 high quality industrial plate beveling machine with long service life Product Description

1 - Applying to non-heat treatment workpiece, for example various mould, parts of machine’s rubdown.

2 - Adopting milling cutter and tungsten steel quadrilateral edge 4130511 is fast and convenient.

3 - It is accurate and with perfect surface.

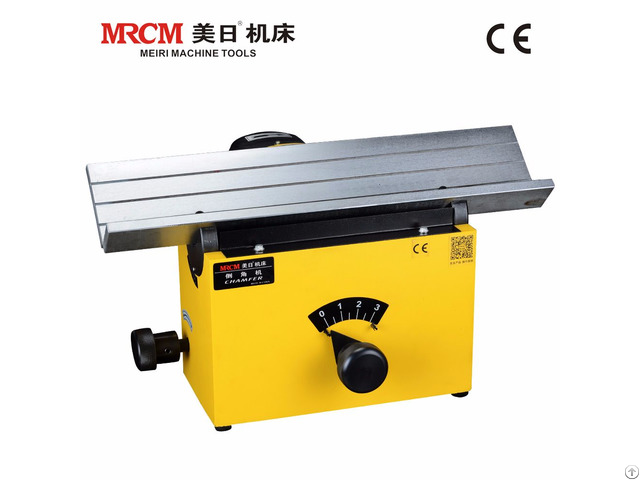

Model: MR-R300

Chamfering height 0-3mm (the max chamfer should not be bigger than 2mm everytime) Chamfering angle 15°-45° Power 550W, 380V 3/4HP Speed 2800rmp Dimension 55*40*30cm

Weight 40KG

Standard Equipment Inserts*1 set Details: MR-R300 SIDE CHAMFER MACHINE This machine is suitable for the workpieces without heat treatment, such as the chamfering of various moulds and mechanical parts.

suitable for iron metal parts chamfering.

The slide rail is treated with high quality steel plate through heat treatment, and it is durable.

No need to clamp, simple operation, chamfering, easy adjustment, economic reliability, efficiency greatly improved, suitable for batch processing parts enterprises.

In operation, the slide rail is leaned to the workpiece and is cut in the direction of the arrow.

Cutting by side milling cutter, the 4130511 square blade blade of hard alloy (Wu Gang) is convenient and quick to replace.

The old blade used by the milling machine can also be used.

The exact surface roughness of the chamfering angle is good.

Note: it is best to keep the grinding amount of 2mm.

R300_01 - jpg Focus on precision and detail R300_15 - jpg The working table is made of high quality die steel through superheat treatment.

It is durable and has little friction.

The chamfering surface is smooth and smooth, and the use of uniform speed can achieve better chamfering effect.

R300_09 - jpg No clamping, simple operation, chamfering, easy adjustment, economic reliability, high efficiency, suitable for batch processing parts enterprises.

In operation, the slide rail is leaned to the workpiece and is cut in the direction of the arrow.

R300_04 - jpg Cutting by side milling cutter, the 4130511 square blade blade of hard alloy (Wu Gang) is convenient and quick to replace.

The old blade used by the milling machine can also be used.

The exact surface roughness of the chamfering angle is good.

R300_11 - jpg
