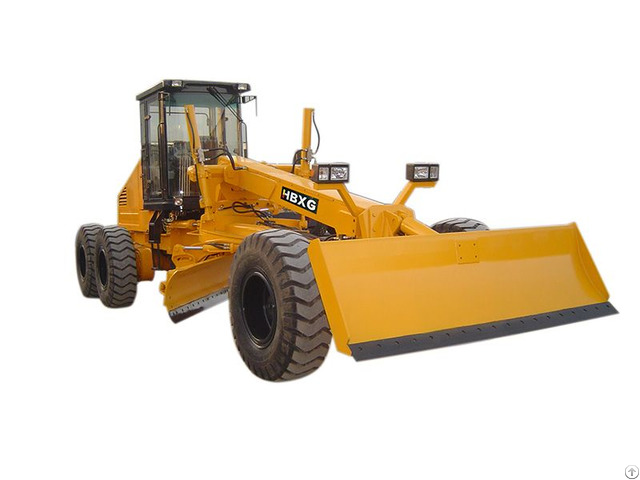

Xhp220c Xhp180c Xhp180d Xhp165c Moto Grader - China

Xhp220c, xhp180c, xhp180d, xhp165c moto grader

types of motor grader, komatsu motor grader, motor grader, motor grader caterpillar, motor grader uses, motor grader controls for sale.

1 - famous brand diesel engine with reliable and powerful performance.

2 - torque converter and power-shift gear box introduced from germany zf inc.

are integrated together.

six forward gears and three backward gears meet various requirements during machine’s working and transporting.

3 - driving axle with integrated free-wheel anti-slip differential and strong roller chain drive balance case, boxed oscillated steering front axle with leaned wheels.

4 - popular working mechanism with pendulum-arm connection rod structure.

standard equipped free-maintenance rolling-plate circle device.

double cylinders of the blade tip control can adjust the cutting angle depending on soil quality.

5 - flexible hydraulic control system with two sets of husco five way control valve, imported hydraulic equializing valve for the blade lifting, patent hydraulically-operated pin drawing device is designed firstly in board.

6 - steering system with center articulated jount and tilting turning front wheels can get offset travel of entire machine.

7 - service braking system of caliper disc brakes on four rear wheels and mechanical internal expending parking brake.

8 - electro-hydraulically operated with entire instrumental monitoring system, free-maintenance optima batteries.

9 - it is optional for front dozing blade and rear ripper.

types of motor grader, komatsu motor grader, motor grader, motor grader caterpillar, motor grader uses, motor grader controls for sale.

model xhp220c xhp180c/180d xhp165c

operating weight 16900 16000 15000

front axle load 5820 5150 4150

rear axle load 11080 10850 10850

max.

forward speed 36.8 38.2 40.4

max.

backward speed 24.8 24.5 25.7

speed gear number f6/r3 f6/r3 f6/r3

turning radius 7800 7800 7500

hydraulic system pressure 18 18 18

blade length x height 3965*610 3965*610 3660*610

front wheel track 2150 2150 2150

rear wheel track 2340 2340 2340

wheel base 6362 6362 6062

engine model 6cta8.3 6bta5.9/d6114zg 6bta5.9

engine power 158 132/132 125

overall dimensions 8585*2790*3340 8585*2790*3340 8285*2595*3340

more information please view here.
