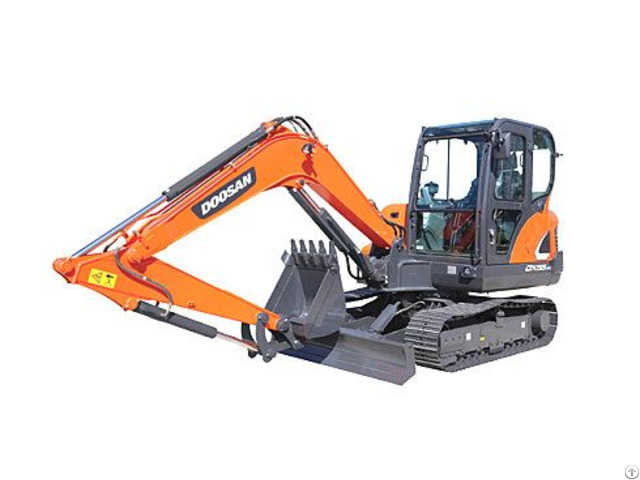

Used Doosan Dx55 9c Excavator - China

Used Doosan DX55-9C specifications

Power: traditional power

Manufacturer: Import

Bucket: Backhoe

Tonnage (tonnes): 5

Bucket capacity (m³): 0.18-0.21

Boom length (mm): 3000

Stick length (mm): 1600 Used Doosan DX55-9C performance

Rotation speed (rpm): 9.2 rpm

Traveling speed (km / h): 4.3 / 2.4 km / hr

Bucket digging force (kN): 4.1

Bucket digging force (kN): 25 Used Doosan DX55-9C engine

Engine model: 4TNV94L

Rated power: (kw / rpm) 36.2 kW (48.3 HP) / 2100 rpm

Number of cylinders (a): 4

Bore diameter × Stroke (mm): 94 mm * 94 mm Used Doosan DX55-9C hydraulic system

Boom cylinders-number × bore × stroke: (mm) 110 mm X 60 mm X 719 mm

Stick Cylinders-Number × Cylinder Bore × Stroke: (mm) 85 mm X 55 mm X 883 mm

Bucket Cylinders-Number × Bore × Travel: (mm) 85 mm X 55 mm X 600 mm Used Doosan DX55-9C oil capacity

Fuel tank (L): 115

Hydraulic oil tank (L): 62 Used Doosan DX55-9C body size

Total transport length (mm): 5, 850

Total transport height (mm): 1, 930

Boarding width (mm): 1, 860

Total track length (mm): 2, 540

Track shoe width (mm): 380

Minimum ground clearance (mm): 360

Counterweight Ground Clearance (mm): 685

Back end turning radius (mm): 1, 650 Used Doosan DX55-9C operating range

Maximum digging radius (mm): 6, 135

Maximum digging radius of stopping surface (mm): 6, 000

Maximum digging depth (mm): 3800

Maximum digging height (mm): 5, 795

Maximum unloading height (mm): 4, 110

Vertical excavation depth (mm): 3125

Maximum effective digging depth (mm): 3800

Dozer blade width × height (mm): 85 mm X 55 mm X 600 mm
