Unionto Zlj20f Iii Container Loader - China

Main Features

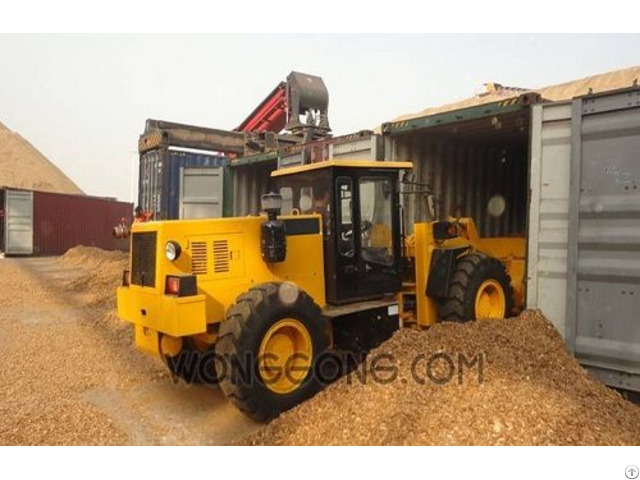

Container loader is special used in container.

The machine height is 2m, suitable worked in port area, high efficiency, low noise, and environmental protection.

1) Use famous engine which produced by the British Ricardo technology, strong power, small smoke exhaust.

2) With oil filter, suitable worked in dust density area, greatly prolong the engine life.

3) Exhaust system with fire-resistant unit, less pollution, low noise, environmental protection and more secure.

4) The engine hood made of high strength steel plate, durable, can effectively protect the engine.

5) Transmission with power shift, high reliability, easy maintenance, torque converter YJ-280 of single-stage three components, high efficiency, and large output torque.

6) Reasonable length and the turning radius, comfortable operation and good performance.

Main performance parameters of UNIONTO-ZLJ20F-III Container Loader

Basic parameter 1 Rated bucket capacity 1.2-1.5m3 2 Rated load 2000KG 3 Total Weight 5500KG 4 Bucket automatic leveling function Yes 5 Static dumping load 4000kg 6 Maximum breakout force 48.8KN 7 Maximum traction force 38.2KGN 8 Maximum gradeability 30° 9 Bucket lifting time 4.8S 10 Bucket dump Time 3.3S 11 Bucket forward time 1.1S 12 Dumping height 1600mm 13 Machine size 6182x1900x2000mm

Engine 14 Model YITUO 15 Type In Line, vertical water-cooled, four-stroke diesel engine 16 No.

of cylinder-bore/stroke 4-105*125 17 Maximum torque 270Nm 18 rated power 60KW 19 Minimum fuel consumption rate ≤243g/kw.

h 20 Rated speed 2200r/min

Transmission 21 Torque converter YJ-280A 22 Type Single-stage single-phase three-element 23 Gearbox type Countershaft, power shift 24 Gear shift 2 Forward, 2 reverse 25 Maximum speed 22Km/h

Drive axle 26 Main reduction type Spiral bevel gear single reduction 27 Hub reduction type First-stage planetary reduction

Tyre 28 Specification 12/70-20 29 Front wheel pressure 220Kpa 30 Rear pressure 180Kpa

Steering system 31 Type Load sensing steering 32 Steering angle About 35 ° ± 1 33 Minimum turning radius 6732mm

Hydraulic system 34 Work distribution valve ZL20E-04T.

QW 35 Working pump CBG2063 36 Working hydraulic system pressure 160Mpa

Braking System 37 Service brake Air cover oil caliper disc brake on 4 wheels 38 Parking brake External beam steering shaft type drum brake 39 Emergency braking Hydraulic caliper disc brake on 4 wheels 40 Fuel capacity 105L
