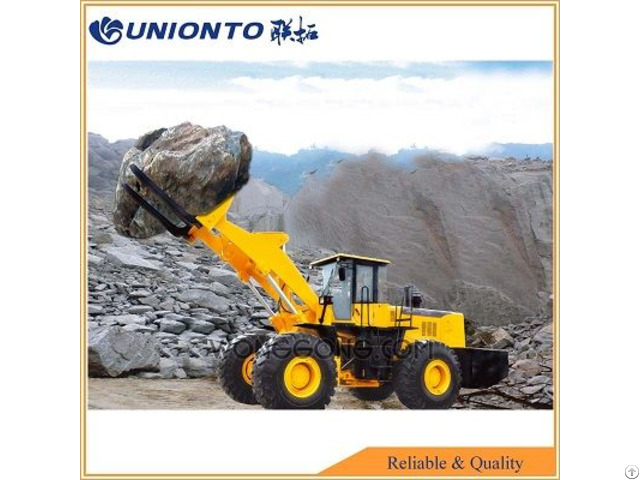

Unionto 888 27t Forklift Loader - China

Main Features

1) Fully hydraulic pilot control, light and flexible, micro-excellent results.

2) Efficient twin turbo planetary gearbox torque converter, high transmission efficiency, reliability.

3) Double pump confluence of work systems, coaxial flow amplifying steering, significant energy saving effect.

4) Advanced automatic fork leveling function, manipulation more convenient, reducing the labor intensity of the driver.

5) High-power turbocharged Steyr engine and strengthening the lengthened chassis and hydraulic system perfectly fit, more reliable, more fuel-efficient.

6) Single tipping cylinder, "Z" type transfer bucket institutions, huge digging force to achieve.

7) Drive axle suitable for heavy duty jobs, gear modulus big, designed for the amount of bad condition work, durability.

8) Enhanced cab with large space and panoramic view, high-quality spring damping sofa seat manufactured by the German professional and technical, safe and comfortable operation.

Main performance parameters of UNIONTO-888-27T Forklift Loader

Performance 1 Rated load 27T 2 Total Weight 28T 3 Maximum traction 200KN 4 Maximum breakout force 200KN 5 Maximum gradeability 25°-30° 6 Maximum dump height 2700mm 7 Minimum dump distance 2200mm 8 Overall dimensions

(L × W × H) 9300×3100×3500mm 9 Minimum turning radius 6880mm

Engine 10 Model Steyr DHD10G0353 11 Type Inline / water / dry cylinder liner / DI 12 Number of cylinders - bore × stroke 6-126×130mm 13 Rated power 175kw-2200r/min 14 Maximum torque 843N.

m 15 Minimum fuel consumption rate ≤220g/kw.

h

Transmission 16 Torque converter Twin-turbo four components 17 Gearbox type Planetary 18 Gear shift 2 Forward and 1 reverse 19 Maximum speed 38Km/h

Drive axles 20 Main reduction type Spiral bevel gear single reduction 21 Hub reduction type Single-stage planetary reduction 22 Wheelbase 3500mm 23 Tread 2250mm 24 Minimum ground clearance 450mm

Hydraulic system 25 System working pressure 18Mpa 26 Boom lifting time 7.5s 27 Three and 15s 28 Fuel tank capacity 300L 29 Forklift automatic leveling function Yes

Braking System 30 Service brake Air over oil caliper disc brake on 4 wheels 31 Parking brake Manual ring hub brake

Tyre 32 Specification 26.5-25 33 Front and rear air pressure 0.55Mpa
