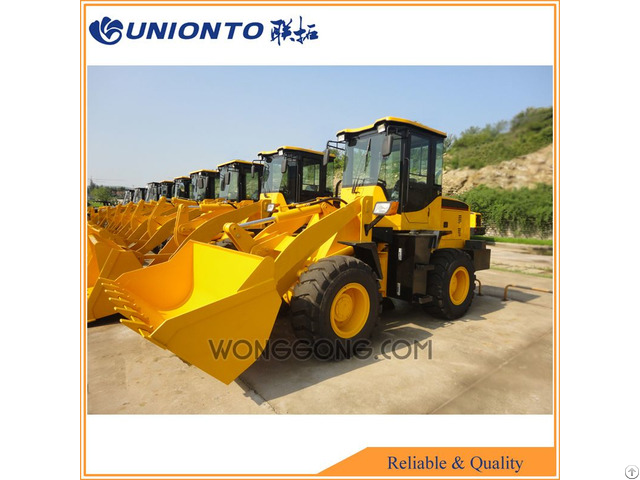

Unionto 828 Wheel Loader Cummins Engine - China

Performance feature: 1) Single handle, full hydraulic pilot manipulation, portable and flexible, high efficiency

2) In-line, water cooled, 4-Stroke engine, with good cold start performance and high power.

3) Using split type torque converter and gearbox, high efficient, easy to maintenance

4) Streamlined design element, make the appearance more beautiful, more modern

5) Cab with full toughened molding glass, can optional chooses air condition make drive more comfortable and vision wider.

6) Improved spring connect model, equip with luxury dashboard and seat, vibration reduction, convenient and comfortable

7) Machine frame choose quality alloy steel, computer optimization design, outstanding performance.

Increasing axle loading, safe and reliable

8) Longer wheelbase makes homework and running more smoothly, superior performance The Main Performance Parameter of Wheel Loader UNIONTO-828

Performance 1 Rated loading 2000kg 2 Overall weight 5800kg 3 Rated bucket capacity 1.2m3 4 Maximum tractive force ≥54KN 5 Maximum breakout force ≥51KN 6 Maximum grade ability 30° 7 Maximum dump height 2622mm 8 Maximum dump reach 752mm 9 Overall dimension (L×W×H) 5633×2120×2712mm 10 Minimum turning radius 4759mm

Engine 11 Model 4BTA3.9—C80 (Cummins) 12 Type In-line, water cooled, 4-stroke, direct injection, diesel engine 13 No.

of cylinder-bore/stroke 4—102×120mm 14 Rated power 60kw—2000r/min 15 Maximum torque 252N.

m 16 Min fuel-consume ratio ≤240g/kw.

h

Transmission system 17 Torque converter YJ—280A 18 Gearbox type Countershaft, power-shift 19 Gear shift 2 forward shift, 2 reverse shift 20 Maximum speed 24km/h

Drive axles 21 Main reduction type Circular Arc Bevel gear, single stage 22 Hub reduction type Single stage planetary type 23 Wheel base (mm) 2400mm 24 Wheel tread 1640mm 25 Ground clearance 310mm

Hydraulic system 26 System working pressure 160MPa 27 Boom lifting time 4.8s±0.2s 28 Total time 9.2s±0.5s 29 Fuel tank capacity 80L 30 Function of leveling automatically Yes

Brake system 31 Service brake Air over oil caliper disc brake on 4 wheels 32 Parking brake Flexible shaft operated external drum 33 Emergency braking Hydraulic caliper disc brake on 4 wheels

Tyre 34 Specification 16/70—20 35 Front tyre pressure 0.22Mpa 36 Rear tyre pressure 0.18Mpa
