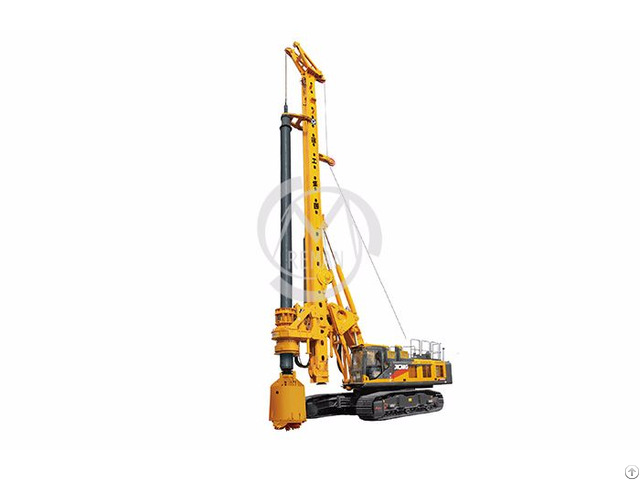

Rotary Piling Rig XR220DII

Foundation Machinery

Product Description

The machine adapt single row rope for main winch to figure out the wear of steel rope.

and extend the life-span.

With infrared camera for observing main winch, Manipulator can observe the state of steel rope at day and night in cab.

Optional configuration according to customers' requirement (Eg: support cylinder, automatic positioning of slewing, Crowd Winch tyro crowd winch CFA, hydraulic casing oscillator, DTH hammer ) Excellent expansibility.

Adopting the supercharged CUMMINS engine with European Ⅲ effluent standard.

Meet environmental protection and energy conservation .

Super power.

With the hydraulic pressure system adopted threshold power control and positive flow control, the system acquired high efficiency and higher energy conservation.

The patented parallelogram articulated structure actualizes a wider work range .

The highly strengthened box-type steel structure design makes the mast of highly-rigidity and intensity, therefore the drill accuracy is heightened .

The machine has passed CE certification of TüV Rheinland group.

Standard centralized lubricating system, allowing easier maintenance.

Engine Model CUMMINS QSL-325 Rated power kW 242

Rotary drive Max.

Output torque KN .

m 220 Rotary speed r/min 7~22

Max.

Drilling diameter mm ￠2000

Max.

Drilling depth m 67

Crowd cylinder Max.

Pull-down piston push kN 200 Max.

Pull-down piston pull kN 200 Max.

Pull-down piston stoke m 5

Crowd winch Max.

Pull-down piston push kN 250 Max.

Pull-down piston pull kN 250 Max.

Pull-down piston stoke m 15

Main winch Max.

Pulling force kN 230 Max.

Line speed m/min 70

Auxiliary winch Max.

Pulling force kN 80 Max.

Line speed m/min 60

Mast rake side/forwards/backwards ±4°/5°/15°

Undercarriage Max.

Traveling speed Km/h 1.5 Max.

Grade ability % 35 Min.

clearance mm 445 Track shoe width mm 800 Distance between tracks mm 3250~4400

Hydraulic system Working pressure Mpa 35

Overall drilling weight t 78

Dimension Working condition mm 8968x4400x22688 Transportation condition mm 16785x3250x4305
