Rotary Piling Rig Xr180dii - China

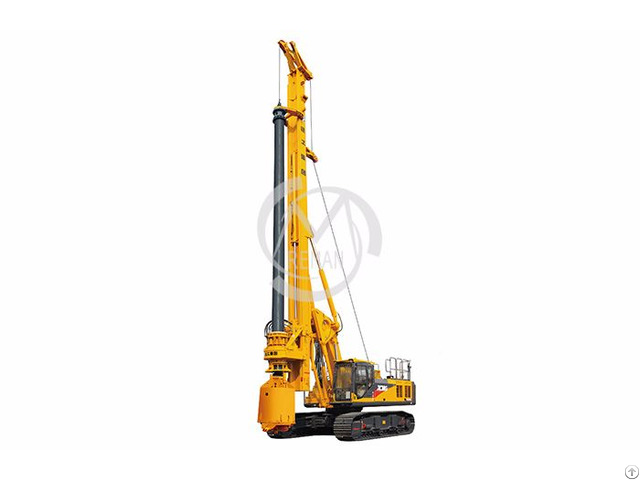

Rotary Piling Rig XR180DII

Product Description

Features：

It adopts dedicated hydraulic retractable crawler chassis and heavy slewing bearing and has high stability;

It adopts the front-located single-rope main winch structure to greatly prolong the service life of steel wire rope and lower the use cost;

Cummins electric control turbo-supercharged engine is used.

It complies with Euro III emission standard, In addition, it has strong power, which is sufficient to satisfy the construction on the plateau.

Its noise is up to the national standard;

Using full electronic control technology of CAN bus, Improves the reliability of the whole vehicle and simplify hydraulic line, Fully reflects the people, machine, electricity and liquid integration;

Winch-crowd and sleeve-driven functions are available for selection to CFA, hydraulic casing oscillator, DTH hammer satisfy various needs of the users;

It is equipped with a centralized lubrication system as standard configuration; maintenance is easier;

The machine obtains CE certfication of TüV Rheinland group.

Engine Model CUMMINS QSB6.7-C260 Rated power kW 194

Rotary drive Max.

Output torque KN .

m 180 Rotary speed r/min 6~33

Max.

Drilling diameter mm ￠1600

Max.

Drilling depth m 60

Crowd cylinder Max.

Pull-down piston push kN 160 Max.

Pull-down piston pull kN 180 Max.

Pull-down piston stoke m 5

Crowd winch Max.

Pull-down piston push kN 210 Max.

Pull-down piston pull kN 210 Max.

Pull-down piston stoke m 13

Main winch Max.

Pulling force kN 180 Max.

Line speed m/min 65

Auxiliary winch Max.

Pulling force kN 50 Max.

Line speed m/min 70

Mast rake side/forwards/backwards ±3°/5°/15°

Undercarriage Max.

Traveling speed Km/h 1.5 Max.

Grade ability % 35 Min.

clearance mm 350 Track shoe width mm 700 Distance between tracks mm 2960~4200

Hydraulic system Working pressure Mpa 35

Overall drilling weight t 63

Dimension Working condition mm 8350x4200x20480 Transportation condition mm 14380x3000x3490
