Rotary Piling Rig

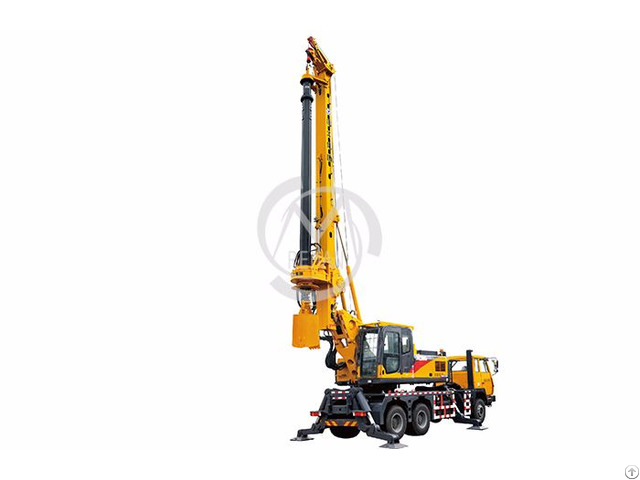

Rotary Piling Rig XRL100

Foundation Machinery

Features:

The equipment adopt the wheel type chassis, can be transported with drill rod,, made the transportation easily economically.

Cummins electronic control turbo supercharged engine meeting Euro III emission standard, saving energy, evironmental protection and strong power;

The patented parallelogram articulated structure actuailizes a wide work range.

The highly strengthened box-type steel structure design makes the mast of highly-rightly and anticontored, therefore the drill accuracy is heightened.

the type A leg make the equipment operate easily, and improved the ability of anti-distortion.

With the hydraulic presssure system adopted the technique of load sensor, which can increase the efficiency of hydraulic system and save energy.

The double protection system of aboard rotary make the construction more safe.

Standard centralized lubricating system, allowing easier maintenance.

Hydraulic Piling Rig.

Engine Model CUMMINS QSB4.5-C155 Rated power kW 116

Rotary drive Max.

Output torque KN .

m 100 Rotary speed r/min 9~40

Max.

Drilling diameter mm ￠1400

Max.

Drilling depth m 25

Crowd cylinder Max.

Pull-down piston push kN 100 Max.

Pull-down piston pull kN 100 Max.

Pull-down piston stoke m 2

Main winch Max.

Pulling force kN 100 Max.

Line speed m/min 70

Auxiliary winch Max.

Pulling force kN 60 Max.

Line speed m/min 54

Mast rake side/forwards/backwards ±5°/5°/15°

Rotary table slewing angle 240

Undercarriage Max.

Traveling speed Km/h 80 Max.

Grade ability % 30 Min.

Ground clearance mm 340 Min.

Turning diameter m 21 Approach angle ° 21 Departure angle ° 18

Hydraulic system Working pressure Mpa 35

Overall drilling weight t 33

Dimension Working condition mm 9900x4600x14640 Transportation condition mm 11285x2500x3656
