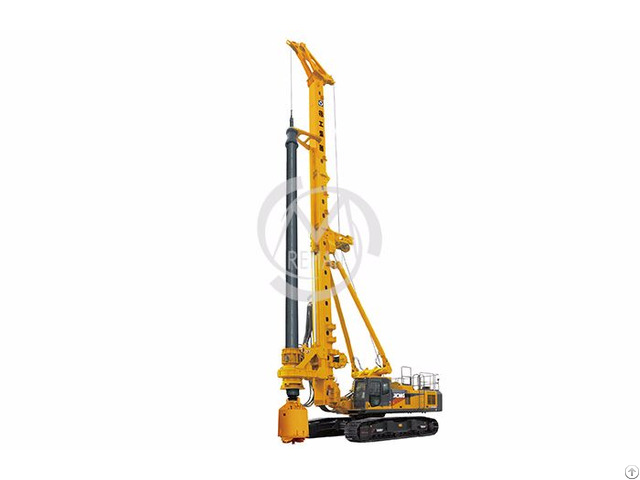

Rotary Piling Rig 280DII

Rotary Piling Rig XR320

Rotary Piling Rig

Product Description

The special hydraulic chassis for the rotating drill with extensible crawler is provided with the excellent stability and is convenient to transport.

The complete machine has passed CE certification of TüV Rheinland group.

The imported Cummins turbo-supercharged engine is powerful, and has sufficient power reserve.

The machine adapt single row rope for main winch to figure out the wear of steel rope.

extend the life-span.

And high reliability .

Optional configuration according to customers' requirement, E.

g: Crowd winch, Outrigger cylinder, Sleeve-driven and so on.

The rotary drive can switch from Nromal Mode, Rock Mode and Energy-Saving Mode, the user can select a corresponding mode of the rotary drive according to the specific working conditions, which can greatly improve the working efficiency and low the fuel consumption.

It is equipped with a centralized lubrication system as standard configuration to provide more convenient maintenance and make the machine a good reliability .

Engine Model CUMMINS QSM11-C400 Rated power kW 298

Rotary drive Max.

Output torque KN .

m 280 Rotary speed r/min 6~22

Max.

Drilling diameter mm ￠2200

Max.

Drilling depth m 88

Crowd cylinder Max.

Pull-down piston push kN 210 Max.

Pull-down piston pull kN 220 Max.

Pull-down piston stoke m 6

Crowd winch Max.

Pull-down piston push kN 300 Max.

Pull-down piston pull kN 300 Max.

Pull-down piston stoke m 16

Main winch Max.

Pulling force kN 260 Max.

Line speed m/min 60

Auxiliary winch Max.

Pulling force kN 80 Max.

Line speed m/min 65

Mast rake side/forwards/backwards ±4°/5°/15°

Undercarriage Max.

Traveling speed Km/h 1.5 Max.

Grade ability % 35 Min.

clearance mm 445 Track shoe width mm 800 Distance between tracks mm 3500~4800

Hydraulic system Working pressure Mpa 32

Overall drilling weight t 96

Dimension Working condition mm 10770x4800x23550 Transportation condition mm 17410x3500x3520
