Nb Industrial Drilling Mud Water Slurry Pump - China
price: 1000.00 Dollar US$

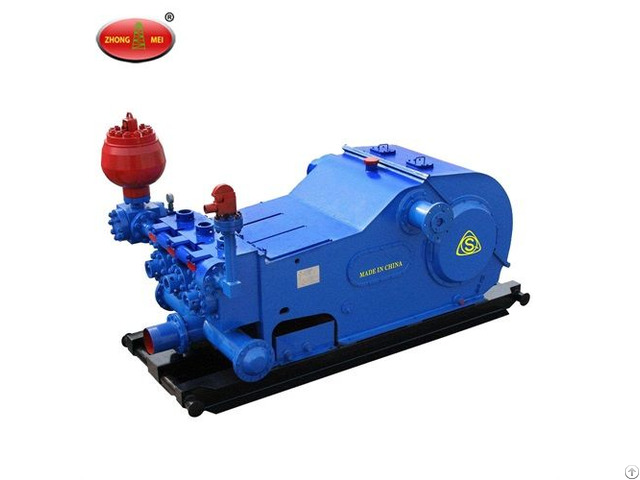

china coal0001 NB Industrial Drilling Mud Water Slurry Pump
Description of NB Industrial Drilling Mud Water Slurry Pump
1 - The power end: The frame of NB Industrial Drilling Mud Water Slurry Pump is welded steel-plate construction.
Its stress-relieved after welding.
The drive gears are involute type gears which allow smooth operation, high efficiency and long life.
The power end is either splash or pressure lubricated.
2 - The fluid end: The suction and discharge flanges conform to ANSI and API specifications.
3 - The piston rod includes an inter-mediate rod, that allows quick assembly & disassembly.
4 - The valve seat bores have a bottom shoulders.
The pistons and liners are spray lubricated and cooled, which allow an extended service life.
Specifications of NB Industrial Drilling Mud Water Slurry Pump
Model 3NB800 3NB1000 3NB1300 3NB500C 3NB1000C 3NB1300C 3NB1600
Power KW(HP) 588(800) 735(1000) 956(1300) 368(500) 735(1000) 956(1300) 1176(1600)
Strokes per minutes (pm) 160 150 140 95 110 120 120
Stroke (mm) 216 235 245 254 305 305 305
Gear ratio 2.51 2.658 2.868 3.82 3.833 3.81 3.81
Max.
working pressure 33 35 35 30 35 35 35
Max.
dia of liner(mm) 160 170 171.5 160 170 180 190
Dia.
Of suction pipe (mm) 257 254 257 254 305 305 305
Dia.
Of discharge pipe (mm) 100 100 100 100 100 100 100
Company Contact:
- Posted By: Shandong China Coal Group
- Phone: 865372350961
- Address: No.11 Kaiyuan Road, Jining , China
- Email:
- Website: https://www.chinacoalintl.com
Published date: August 19, 2018
- Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd
(hereinafter referred to as china coal) is a group company .
which is a
collection of e commerce, machinery manufacturing, software, research
and development, modern logistics of large diversified industrial group.
