Horizontal Directional Drilling Xz680a - China

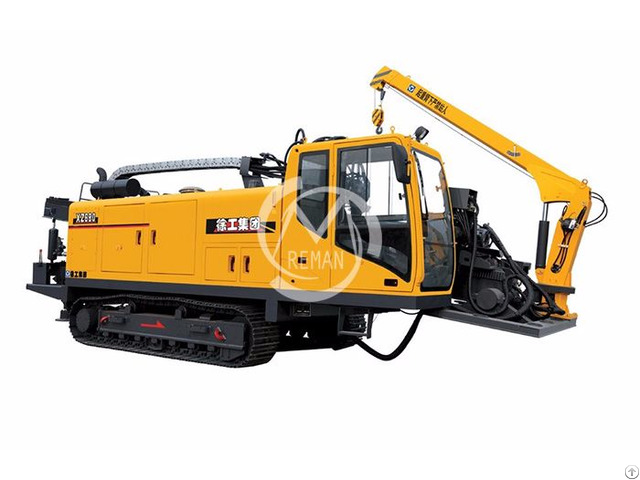

Horizontal Directional Drilling XZ680A

Horizontal Directional Drilling

Product Description

1 - Closed loops, hydraulic pilot control, load sensing control help to save energy and operate flexibly.

2 - The gear and rack transmission makes stability and reliability, Double floating patented technology for power head and vice is to improve service life of rods’ thread.

3 - Elastic equilibrium release technology is to avoid device damaging when pulling pipeline back, which increase the reliability.

4 - Mud flux stepless speed regulation saves mud and reduce pollution.

5 - Cab’s 45 ° rotation enhances comfortable operation.

Project Unit Parameter

Engine

Type - Cummins 6CTAA8.9-C325

Rated power Kw/r/min 239/2200

Thrust-pull

Max thrust-pull force KN 725

Thrust-pull speed m/min 32

Rotation

Torque N.

m 31000

Max spindle speed r/min 110

Mud pump

Max flow rate L/min 600

Max pressure M pa 10

Pipe mmxm Φ102x6

Loader crane

Lifting weight t 2

Loading capacity t.

m 4

Max inclination angle ° 18

Max backreamer diameter mm Φ1000

Weight t 21

Dimension mm 11610x2475x3115

Remark: - Optional：Semi-automatic pipe loader
