Horizontal Directional Drilling

Trenchless Machinery

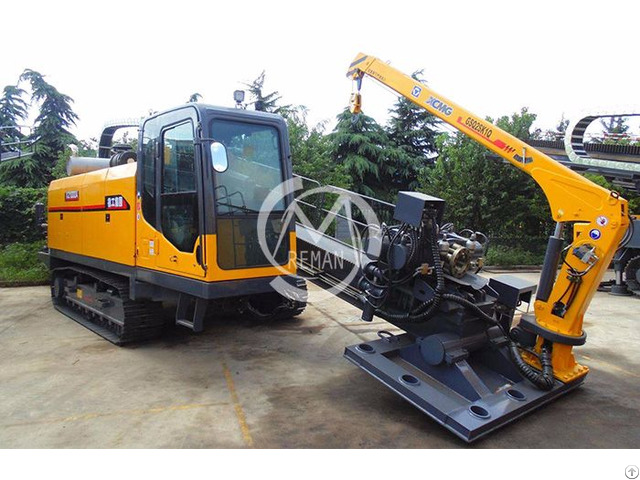

Horizontal Directional Drilling XZ1000A

1 - Closed loops, hydraulic pilot control, load sensing control help to save energy and operate flexibly.

2 - The gear and rack transmission makes stability and reliability, Double floating patented technology for power head and vice is to improve service life of rods’ thread.

3 - Elastic equilibrium release technology is to avoid device damaging when pulling pipeline back, which increase the reliability.

4 - Wire guided walking system makes moving safe.

5 - Mud flux stepless speed regulation saves mud and reduce pollution.

6 - Cab’s 45 ° rotation enhances comfortable operation.

Project Unit Parameter

Engine

type - Cummins 6LTAA8.9-C360

Rated power Kw/r/min 264/2200

Thrust-pull

Max thrust-pull force KN 1075

Thrust-pull speed m/min 35

Rotation

Torque N·m 35000

Max spindle speed r/min 120

Mud pump

Max flow rate L/min 600

Max pressure Mpa 10

Pipe mmxm φ114×6

Loader crane

Lifting weight t 2

Loading capacity t·m 4

Max inclination angle ° 18

Max backreamer diameter mm φ1000

Weight t 23

Dimension mm 11500x2900x3000

Remark - Optional：Bigger Torque Carriage(43000N·m)
