Horizontal Directional Drill Xz320d - China

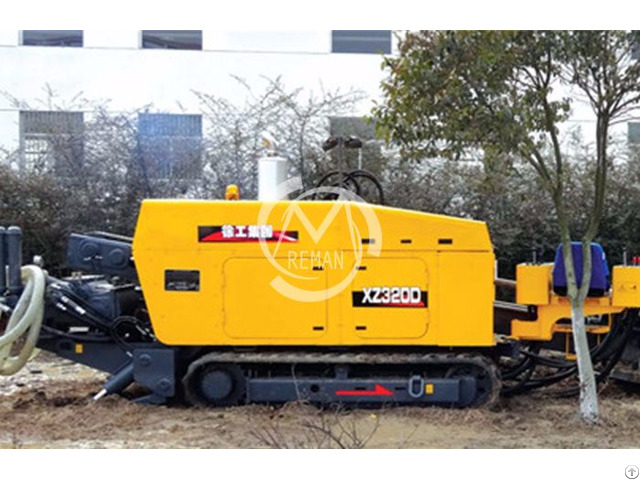

Horizontal Directional Drill XZ320D

Horizontal Directional Drilling Machine

Product Description

1 - High-power engine system, strong power.

It is adopted turbine engine which power is 153kW.

The powerful engine is enough and insures there is enough power for drill in different working conditions.

2 - Rack and pinion sliding, to ensure the stability of the carriage and the reliability of drive operational.

3 - Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.

4 - High-speed sliding and rotation systems, variable motor to achieve high and low power head sliding change, increasing the ability to adapt the drilling rig working conditions, improve the efficiency of the drilling rig construction.

5 - Support the diverse needs of customers, the machine can be increased with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices.

Project unit Parameter

Engine

Type Cummins 6BTAA5.9-C205

Rated power Kw/r/min 153/2200

Thrust-pull

Max thrust-pull force KN 320

Thrust pull-speed M/min 15

Rotation

Torque N·m 12000

Max spindle speed R/min 140

Mud pump

Mud flow rate L/min 320

Max pressure Mpa 8

Pipe mmxm φ73×3

Loader crane

Lifting weight t -

Loading capacity t·m -

Max inclination angle ° 20

Max backreamer diameter mm φ800

Weight t 10

Dimension mm 6500x2250x2450

Remark Optional: I.

Cab; II.

Air-condition; III.

Full automatic pipeloader; IV.

Semi-automatic pipeloader;V.

Automatic anchor;VI.

Dual automatic anchor; VII.

Mud antifreeze; VIII.

Mud cleaning; IX.

Automatic thread oil daub.
