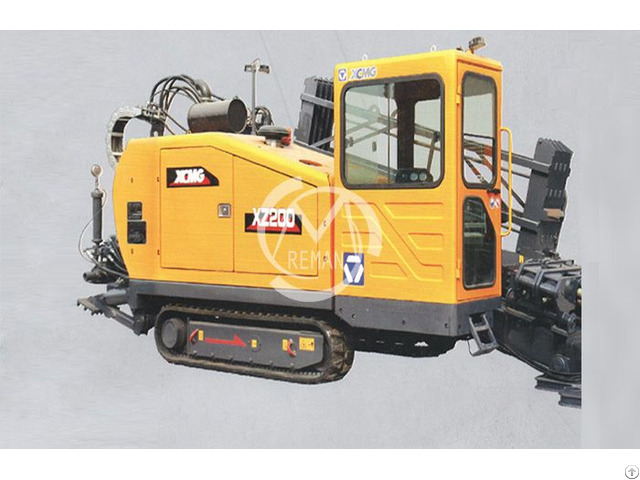

Horizontal Directional Drill HDD XZ200

Horizontal Directional Drilling

Trenchless Machinery

Product Description

1 - Hydraulic pilot control, provide comfortable operating performance and flexible regulation, first-class brand of hydraulic components to ensure the reliability of the machine hydraulic system.

2 - Carriage and clamp use double floating patented technology can greatly protect the drill pipe thread, increase the service life of the drill pipe.

3 - High-speed sliding systems, Piston Motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.

4 - Stable chassis support, using the classical H type beam structure, quality rubber track, frog Outrigger, provides a strong guarantee for the stability of construction

5 - Support the diverse needs of customers, the machine can option configuration with the automatic (semi-automatic) drill pipe handling device, automatic anchoring system, cab, air conditioning wind, cold start, freezing mud, mud washing, mud throttling and other devices, can also be optioned more Eco Saving Cummins with EU Stage ⅢA.

Parameters:

Project Unit Parameter

Engine

Type - Cummins 6BTAA5.9-C150

Rated power Kw/r/min 112/2200

Thrust-pull

Max thrust-pull force KN 225

Thrust pull-speed M/min 26

Rotation

Torque N·m 6350

Max spindle speed R/min 160

Mud pump

Max flow rate L/min 250

Max pressure Mpa 8

Pipe mmxm φ60×3

Loader crane

Lifting weight t -

Loading capacity t·m -

Max inclination angle ° 22

Max backreamer diameter mm φ600

Weight t 8.5

Dimension mm 5900x2020x2400

Remark - Optional: I.

Cab;II air condition;III.

Full automatic pipeloader;IV.

Semi-automatic pipeloader;V.

Single automatic anchor VI.

Dual automatic anchor VII.

Mud antifreeze; VIII.

Mud cleaning; IX.

Automatic thread oil daub X.

Piston pump hydraulic system
