Gypsum Board Production Line Equipment Manufacturer - China

Introduction of the Equipment

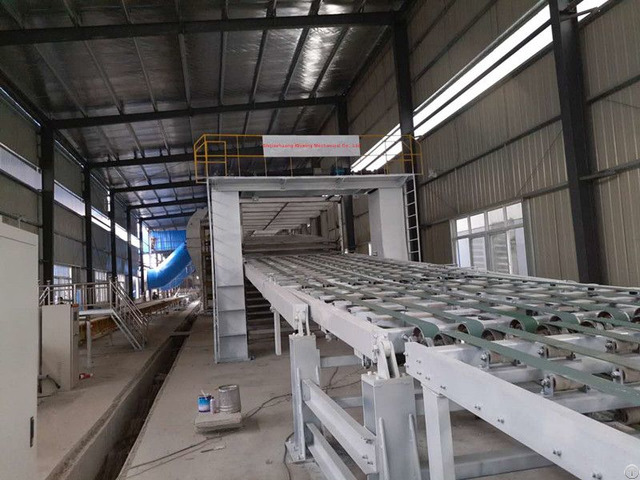

Paper Surface Gypsum Board Production Line

Gypsum board production line is the current production of new special equipment for decorative materials, the main work processes include:

1 - The plaster and water and various additives, respectively, by automatic metering, automatic delivery system into the mixer, mixing into a gypsum slurry, and evenly sprinkled in the continuous forward movement of the face paper;

2 - In the continuous forward while vibrating, the slurry gradually spread evenly, then into the extrusion molding machine and the upper and lower face paper complex, by the extrusion molding pulp is completely covered by the upper and lower skin paper, and extruded into Continuous slurry gypsum board;

3 - The board in the molding line during the operation after shaping, natural solidification, automatic cutting, etc.

have been gradually formed wet solid gypsum board, wet board by the program-controlled system, through the roller, belt conveyor and flap quickly into the drying room;

4 - The board in the drying room under the strict control of each temperature zone, and into the hot air at different temperatures, wet plate evaporation, starch reaction and the board bonded to the protective paper, dried gypsum board from the drying room stand out;

5 - And then flap again and pieces (front-facing), the length of the saw will cut the board into a certain size of the finished board;

6 - The final delivery to automatic head and automatic stacking, palletizing completed by the forklift truck to the finished product warehouse.

Because the gypsum board has the advantages of light weight, fire prevention, sound insulation, heat preservation, heat insulation and good processability (planing, nailing and sawing), convenient construction, good disassembly performance and increased use area, etc.

Widely used in various industrial buildings, civil buildings, especially in high-rise buildings can be used as interior wall materials and decoration materials.

Such as: for cabinet structure in the non-load-bearing walls, interior Tiemian Ban, such as ceiling.

Gypsum board production line specifications models, complete sets of prices, is based on user requirements of product quality, product output, raw material structure and other factors designed to determine.

Annual output: 1.5 million square meters / year -3000 square meters / year

1 - Reasonable design, perfect matching, reliable operation;

2 - My company has: less investment, fast construction, low operating costs, cost-effective advantages;

3 - Set the production line design, manufacture, installation, commissioning, production in one, created a number of elite teams;

4 - Customer success, customer development for business purposes, long-term cooperation for a better future for the idea.

​

​

Service items: 1 - My company has a professional installation team, home installation and commissioning, until the production of qualified products so far;

2 - Long-term supply of spare parts, equipment warranty for one year

3 - Responsible for long-term technical advice and technical services, ready to solve a variety of technical problems

4 - Charge d'affaires shipment and the relevant import and export procedures.

The progress of the project construction, project approval, process layout, civil construction, equipment selection, production and installation, production commissioning, trial production stage, the entire process can be completed in 3 to 5 months.

Company Contact:

• Posted By: Shijiazhuang Wuxing Mec hanical  Co., Ltd.

• Phone: +8615832478108

• Address: Jinzhou Industrial Road, Shijiazhuang , Hebei , China

• Email:

• Website: http://www.wuxinggypsumequipment.com/

• Business Description: Shijiazhuang Wuxing Mechanical Co., Ltd established in 2005, is a professional manufacturer engaged in the research, development, production, sale and service of gypsum board production line, Gypsum powder production line, calcium silicate board production machine and Light Mineral Wool Board production machine.

  We are located in Shijiazhuang city with convenient transportation access.

  Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
