Bw150 Horizontal Triplex Piston Drilling Mud Pump - China
price: 1000.00 Dollar US$
china coal0001

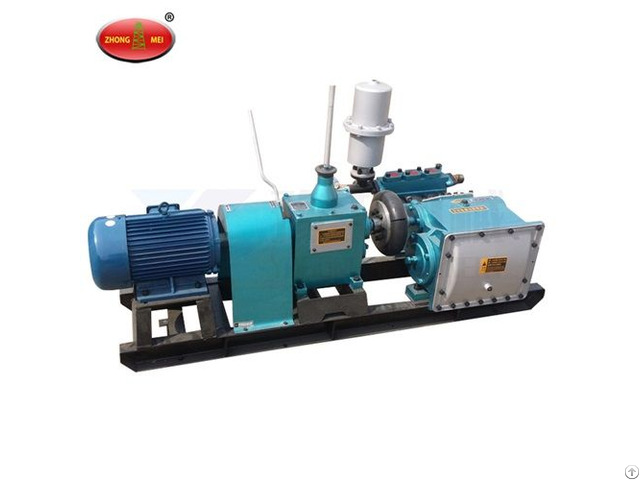

BW150 Horizontal Triplex Piston Drilling Mud Pump Introduction of BW150 Horizontal Triplex Piston Drilling Mud Pump
BW150 Horizontal Triplex Piston Drilling Mud Pump is a reciprocating single-acting pump with eight different pressures and flows.
BW150 Horizontal Triplex Piston Drilling Mud Pump could be served as a matching facility to 1500m small caliber diamond drilling machine, and also be used for grouting cement slurry.
Application of BW150 Horizontal Triplex Piston Drilling Mud Pump
1 - Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2 - Exploration: Coal mining exploration, Ore exploration;
3 - Water well : Small hole diameter water well drilling;
4 - Pipe-installing : Geothermal pipe-installing for heat pump;
5 - Foundation piling: Small-diameter hole foundation piling drilling.
Parameter of BW150 Horizontal Triplex Piston Drilling Mud Pump
Type Horizontal, triplex, reciprocating, single acting piston pump
Stroke 70 mm
Cylinder dia.
70 mm
Pump speed (r/min) 1500
Output volume (l.p.m) 150; 90; 58; 38; 125; 72; 47; 32
Discharge pressure (Mpa) 1.8; 3.2; 4.8; 7.0; 2.3; 4.0; 6.0; 7.0
Volumetric efficiency 85%
Input power (Kw) 7.5
Suction Pipe dia.
(mm) 50
Discharge pipe dia.
(mm) 32
Drilling hole depth (m) Diamond core drilling <1500聽
Dimensions (mm) 1840* 795*995
Weight (kg) 630kg
Company Contact:
- Posted By: Shandong China Coal Group
- Phone: 865372350961
- Address: No.11 Kaiyuan Road, Jining , China
- Email:
- Website: https://www.chinacoalintl.com
Published date: August 19, 2018
- Business Description: Shandong China Coal Industrial&Mining Supplies Group Co., Ltd
(hereinafter referred to as china coal) is a group company .
which is a
collection of e commerce, machinery manufacturing, software, research
and development, modern logistics of large diversified industrial group.
