Electric Melting Machine - China

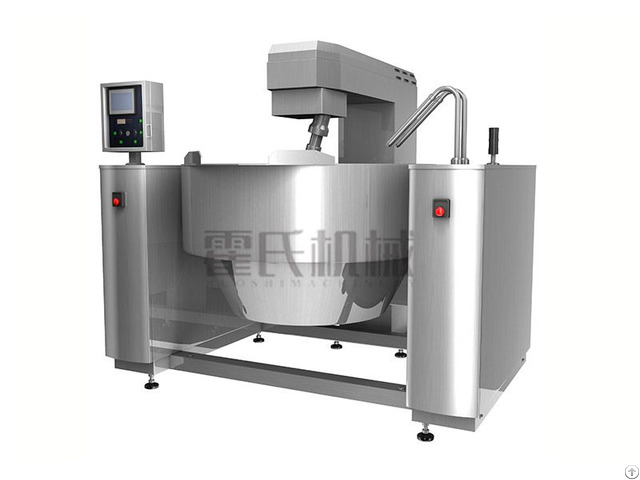

Electric Melting Machine, Thermo-Mixing Cooking Pot, Accurate Temperature Control, CE Certified

Candy Machine

Accurate temperature control Candy Machine PRODUCT DETAILS

Quick Details

Condition: New

Place of origin: Beijing, china (mainland)

Brand name: Kaihong

Model number: Ryj/dc 2118

Application: Candy

Voltage: 380v~415v

Power(w): 40kw, 50kw, 60kw

Weight: 1800 kg

Dimension(l*w*h): 2190*1700*1900 mm

Certification: Ce

Warranty: 12 months

After-sales service provided: Engineers available to service machinery overseas

Temperature range: 50 ~280 centigrade

Temperature accuracy: ±1centigrade

Stirring speed: 0~23r/min

Stirring power: 3kw

Pot overturn power: 0.37 kw

Volume: 400 l/600l

Working condition: Temp: 0~35 centigrade, mc: ≤75%rh Packaging & delivery

Packaging details: Fumigation-free boxes

Delivery detail: 10~25 days Induction heating

What is induction heating and its advantages?

Induction heating is the most advanced heating technology in the heating world.

Induction heating results from the direct application of two physical laws, the lenz law and

The joule effect:

Any electrically conductive material, placed in a variable magnetic field, is the site of induced

Electric currents, called eddy currents.

due to the joule effect (p =r x i² ), these currents dissipateheat in the material in which they appears.

For example, the application of induction heating in the deep fryer kettle(picture below) The coils generate a changing magnetic field in a certain space, where the kettle was placed.

The changing magnetic field causes induced eddy current in the kettle, whose material is eletrically conductive material.

The eddy currents dissipate heat in the kettle.

So from the macro perspectives, the kettle is the heating source and heats the food directly.

Compared with traditional heating method, gas heating and electrothermal heating.

In induction heating, the kettle generates heat.

It is the heating source just like fire in gas heating and electric tubes in electothermal heating.

But the kettle heat the food directly while fire and electric tubes have to transfer their heat to other heating medium, such as air or heat transfer oil.

Through a series of transfer process, a lot of heat lost.

Heat transfer process in food heating

The less heat transfer process, the less heat

Loss, the less thermal lag and the faster heat speed.

Product description

Advantages of the machine :

1 - Energy saving.

The heating efficiency can be as high as 95%.

2 - Heating fast.

Temperature rising speed: 1℃/s

3 - Heating evenly.

Every spot of the heating area is of the same temperature.

4 - Accurate temperature control.

Highest temperature: 280 ℃, temperature accuracy: ±1 ℃.

5 - Fully automatic.

Planetary stirring, tiltable kettle, adjustable sitrring speed.

All the motions can be controlled by buttons on the control board.

Plc system is available but optional.

6 - Durable.

All stainless steel of food quality.

German-based quality.

Working life of the machine: 8~12 years.
