Szl Double Drums Automatically Boiler - China
price: contact company for price

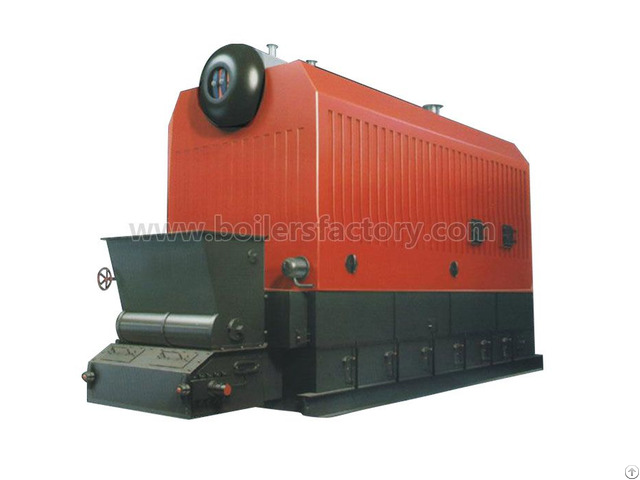

SZL Double Drums Automatically Boiler
Capacity: 4t/h-20t/h 2.8mw/h - 14mw/h
Pressure: 0.7Mpa-2.5Mpa
Fuel: Coal, Biomass pellet, Rice Husk, Bagasse, etc.
Double Drums Automatically Boiler Description
SZL type boiler is a kind of double-drum longitudinal chain grate stoker steam boiler, it has high thermal efficiency of heating change convection layout, water cycle system is reasonable, water capacity and steam space is large, and has high steam quality.
The operating efficiency of the boiler is stable and has overload operating ability.
Light chain belt type assembly grate is matched with stepless speed device, that makes the adjustment method of the best combustion mode to be more complete, the burning light chain grate realizes feed coal by machinery, and it can be equipped with drum and induced draft fan to realize mechanical ventilation.
Fuel fall into furnace grate from coal scuttle, is feed in furnace tank along with furnace grate, after the flue gas passing through the behind arch upper chamber, up along the combustion chamber to pass through the smoke chamber and enter into the first tube bundle, then reach the font smoke box, introduced by the induced draft fan to enter into the flue, de-dusting apparatus and chimney, then the smoke is discharged to atmosphere.
The boiler automation level is high, the boiler water supply can be adjusted automatically, high and low level alarm, is equipped with low water level and blowers interlocking protection.
The boiler coal, slag discharge operation mechanically, auxiliary engine is complete supporting.
Steam boiler
YongXing manufacture Oil & Gas Fired Boiler, Biomass Fired Boiler, Thermal Oil Boiler, Pressure Vessels, Electrical Steam Boiler, Hot Air Boiler, Coal Fired Boiler etc.
We are the national A- class boiler manufacturer
Company Contact:
- Posted By: Henan Yongxing Boiler Group Co.,Ltd
- Phone: 8637162567966
- Address: No.855 Weilai Rd, Zhengzhou, Henan, China, Zhengzhou , Henan , China
- Email:
- Website: http://www.boilersfactory.com/
Published date: February 26, 2018
- Business Description: Since our establishment in the 1990s, we have developed from a small enterprise into a comprehensive group, National A- class boiler manufacturer and A-class pressure vessels manufacturer.
With three existing plants, we integrate the R&D, and has passed the certification of ISO9001: 2000 Quality Management System and ISO 14001: 2004 environment management system.
The coal, oil, gas fired, electrical heating steam boilers, hot water boilers, thermal oil heaters, hot air generators.
And the pressure vessels strictly execute national and industrial standard, featured by compact structure, low noise, high thermal efficiency, safe and reliable operation, elegant appearance, and high automation degree.
Our group company covers an area of 300, 000 square meters, the fixed assets of 42.77 million yuan, used for more than 100 sets large and medium-sized productive equipments and more than 60 sets advanced equipments for products quality testing.
With 37 series of boilers and pressure vessels, 167 specifications, the annual production capacity is about 1000tph.
The first and second class pressure vessels are more than 500 sets.
HenanYongxing Boiler Group has been rated as “Contract-honoring and Promise-keeping Enterprise” by Henan Industrial and Commercial Bureau, and “Nationwide Creditable and Law-abiding Enterprise” by Ministry of Agriculture, brought into member unit by Chinese Quality Technology Supervision Association and Provincial Environmental Protection Association, and obtained patent technologies.
We manufacture products such as oil & gas fired boiler, biomass fired boiler, thermal oil boiler, pressure vessels, electrical steam boiler, hot air boiler, coal fired boiler and so on.
We are the national A- class boiler manufacturer.
“Fastness , Innovation, Transcendence, Credit” is Yongxing peoples corporate philosophy, “High-quality, Pragmatic, Efficient” is Yongxing peoples permanent commitment.
We expect to cooperate with users to create the glory! Welcome to our company!
YongXing manufacture Oil & Gas Fired Boiler, Biomass Fired Boiler, Thermal Oil Boiler, Pressure Vessels, Electrical Steam Boiler, Hot Air Boiler, Coal Fired Boiler etc.
We are the national A- class boiler manufacturer.
Welcome!
