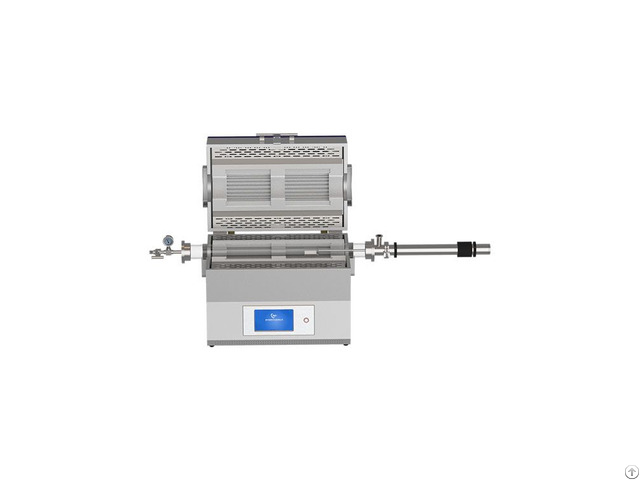

Desktop Double Heating Zone Tube Furnace With Magnetic Push Rod - China

The dual-temperature zone tube furnace is equipped with a magnetic push rod, which has an exquisite structure and high reliability, and can perform displacement operation on the sample in the tube while keeping the furnace tube vacuum tight.

Combined with separate temperature control in dual temperature zones, it can realize a variety of heat treatment processes for users and is an ideal equipment for material research and material processing.

Maximum power: 4KW;

Heating rate: Maximum 20℃/min, recommended ≤10℃/min;

Operating temperature: Maximum temperature≤1200℃; continuous working temperature≤1150℃;


Heating temperature zone: Dual temperature zone 200mm+200mm;

Furnace tube parameters Length 1000mm O.

D 60mm I.

D 57mm;

Temperature control accuracy: PID temperature control accuracy ±1℃;

Thermocouple: K type thermocouple
