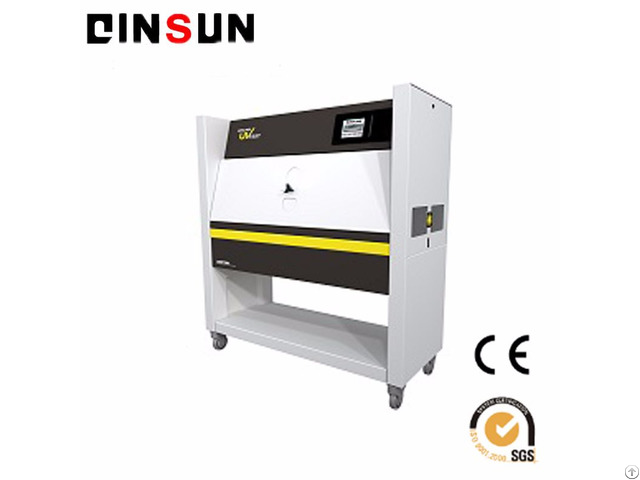

Uv Aging Test Chamber For All Kinds Of Geo Synthetics - China

The UV aging test chamber is suitable for all kinds of geo-synthetics, such as light resistance, weather resistance and light ageing

The exposure test of the sample was carried out in a fluorescent UV lamp vessel in a controlled environment.

It can simulate and strengthen the environmental factors in the natural climate that are affected by light, heat, humidity, and rainfall as the main aging.

It can simulate the accelerated test under long term exposure to obtain the results of the weather resistance of the material.

Standard · JTG E50 T1164 The methods of geo-synthetics for highway engineering

· GB/T 14522-93 Accelerated weathering test method for plastics, coatings and rubber materials used for machinery industrial products.

· GB-T16422.3-1997 Plastics--Methods of exposure to laboratory light sources--Part 3: Fluorescent UV lamps

· ISO4892-3: 1994 Plastics - Methods of exposure to laboratory light sources - Part 3: Fluorescent UV lamps Structures

·Main features: light, condensation, automatic cycle control, real-time monitoring and display

·Light temperature: RT + 10 ℃ ~ 70 ℃

·Condensation temperature: 50 ℃

·Condensation method: steam humidification condensation

·Temperature uniformity: ± 3 ℃

·Irradiation intensity: 0.55W / m2

·Light / condensation cycle: 0 ~ 9999h, 59min.

It can be set (such as: 4H / 4H or 8H / 8H)

·Lamp center distance: 70mm

·Sample and lamp plane distance: 55mm

·UV lamp: UV-A340 or UV-B313 (optional)

·UV wavelength: (UVA) 315 ~ 400nm; (UVB) 280 ~ 315nm

·Lamp life: 1600 ~ 1800H

·Standard test piece: 75 × 150mm or customized according to customer requirements (it can be made for 21 samples)

·Control system: touch screen controller, real-time monitoring friendly interface, easy to use and easy to operate.

·Power supply: AC220V 50HZ 4.7KW
