Textiles 45 Degree Flammability Tester Complies With Astm D1230 - China

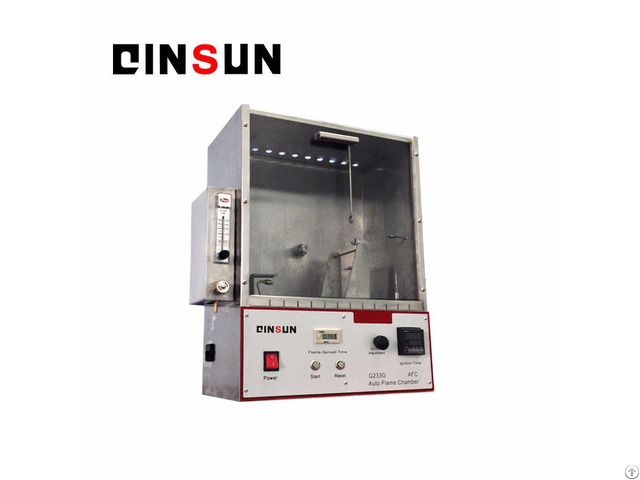

45 degree flammability tester is designed to determine the burning characteristics of textiles.

Stainless steel test cabinet with glass observation panel, provided with automatic timing of flame spread in 0.1 second increments from ignition.

Ignition time free Settings.

Testing Standards:

ASTM D1230, FTMS 191-5908, CFR 16 Part 1610, CALIF TB 117, NFPA 702, GB/T 14644 Structure:

Flowmeter : Adjust the gas flow size;

Fire tube : The gas is first connected to the flow meter through the hose, and then through the rear hose of the box into the flame pipe;

Windscreen: the upper part of the windshield is provided with glass;

The experiment was carried out in a ventilated kitchen.

The round hole on the top of the box and the gap on the windshield make the gas convection.

Control panel : Power- power switch ；Start：Start internal motor operation.

When the flame tube moves to the test position (the vertical distance from the sample center is 8mm, the horizontal distance is 3.2mm), the internal timing switch is touched;

Reset : Timer reset /Fire tube reset;

Sample clamp and specimen holder : The sample frame substrate is provided with a knob which can adjust the left and right movement, and the sample frame substrate is moved and fixed by loosening and tightening the knob;

Timer : Display settings and actual ignition time.

After the time is cleared, the fire tube can complete the required movement.

Or the fire tube can not return to the original position after moving forward;

Test room size: W368 × D216 × H356mm

Sample shelf angle: 45 °

Flame spread time setting range: 0.01S-99.99S ignition time of the sample surface : 1.0S ± 0.05S
