Rebar Shot Blasting Machine With Surface Finish Level Sa2 5 - China
price: contact company for price
Rebar Shot Blasting Machine Manufacturer JX Provides Rebar Shot Blasting Machine with Surface Finish Level Sa2.5, Special Design for Hot Rolled Bars.

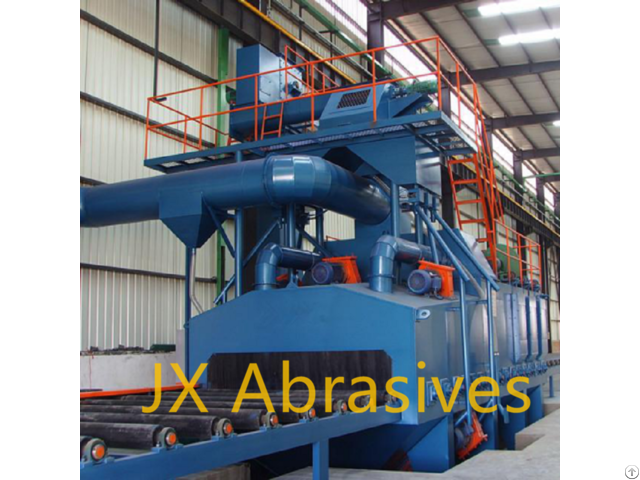

Rebar Shot Blasting Machine is a specially designed machine used for the surface cleaning of hot rolled bars.
It can realize the shot blasting automatically.
The machine consists of roller conveyor system, blasting system, abrasive circulation system (separator, bucket elevator, screw conveyor), dust collection system and electric control system.
The surface finish level is Sa2.5 - Technology Parameter (Customized is available): Part I Processed workpieces and parameters 1 The machine dimensions See the drawing 2 Shot blasting chamber Width1300mm X Height 500mm opening size 3 Max.
workpiece size 12000mm X (8-40)mm (Length X Diameter) 4 Max.
workpiece weight 500kg 5 Finish level Sa2.5 (IS08501-01) 6 Processing speed 0.5-2.5 m/min (According A-D grade degree of corrosion of original workpiece surface and workpiece diameter size use the stepless frequency conversion variable speed) 7 Surface roughness 40~85 μ (Depend on abrasive size) 8 Suggest abrasive Φ0.2~2.5 9 Electric power supply 380V, 3P, 60HZ 10 Pit requirement Waterproof 11 Compressed air consumption 0.3m3/min 12 Controlled system Conventional button mode 13 Noise ≤95dB 14 Discharged dust 80, (better than GB16297-1996 "comprehensive atmospheric pollutant consistence discharge standard" in the regulation of 120 mg/m3) 15 Dust content after cleaning 10mg/m3
