H Beam Shot Blasting Machines For Surface Cleaning - China

H Beam Shot Blasting Machine Factory JX Provides H Beam Shot Blasting Machines for Surface Cleaning and Strengthening, to Improve the Quality of Surface.

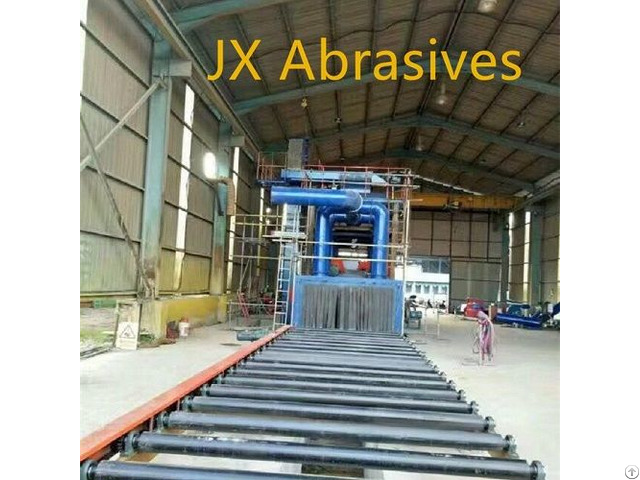

JX H beam shot blasting machine are automatically table roller continually passing type.

This type of machine is especially used for steel H beam surface cleaning and strengthening, to get a certain degree of surface roughness, to add paint adhesion force, to improve surface quality and to enhance anti-corrosive effects.

There is a shot blaster on each side of the shot blasting room.

They are assembled in the best position according to the H beam condition.

Technical Parameters:

1 - Blasting chamber Blast Chamber Open Size: 2500mm—1200mm 2 - Roller conveying system 1) Working speed m/min : 0.5-4 2) Power : kw 4x2 3 - Blasting nozzles 1) Model: Q034H 2) Shot blasting volume : kg/min 250—10 3) Power: kw 15—10 4) Quantity: Set 10 4 - Portrait & horizontal screw conveyor 1) Portrait Delivery capacity: t/h 150 2) Power: kw 7.5 3) Horizontal delivery capacity: t/h 150 4) Power: kw 5.5 5 - Bucket elevator 1) Lifting capacity: t/h 150 2) Power: kw 11 6 - Separator 1) Separating capacity: t/h 150 2) Air speed in separating area: m/s 4~5 3) Power: kw 5.5 7 - Dust collector system Pulse cartridge dust collector Quantity: set 2 8 - Reverse Blower

1) Air volume: m3/h 9000 X 2

2) Power: kw 18.5+ 11 9 - Lifting system for cleaning Brush 1) Lifting distance: mm 0~1200 2) power: kw 2.2 x2 3) Cleaning Brush 4) Diameter of brush: mm 600 5) power: kw 3 Total power: kw 263

Total air volume: m3/h 38000 This machine is not a standard machine, any parameters can be customized according clients' requirements, so any further information please contact with us, our skilled engineer team will give you the most professional and cost-effective solutions.
