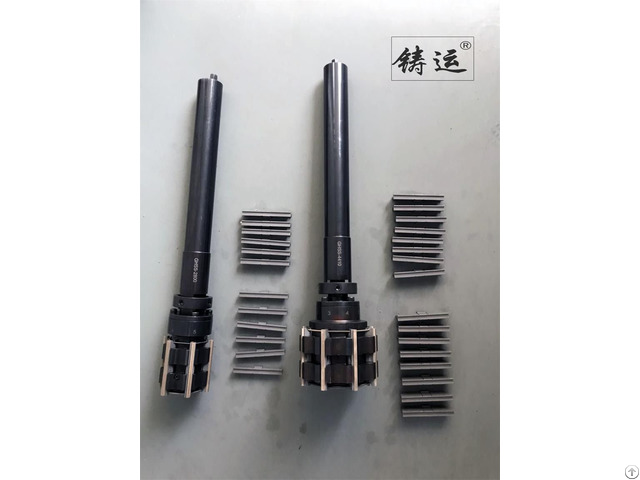

Ghss Series Sunnen Honing Tools - China
price: 1.00 Dollar US$
Shanghai Zhuyun Machinery Co., Ltd. offers various types of honing tools, honing mandrels and honing applications.
Our products range in diameter from 2.5mm to 300mm and are suitable for all honing series.
Sunnen style GHSS Honing head designed used on Sunnen SV10, CV-616 and CK21 honing machines.
GHSS-1480 Hone Head: Hone bore diameter range from 37.59mm - 49.78mm (1.48″~1.96″)
GHSS-1950 Hone Head: Hone bore diameter range from 49.53mm - 62.99mm (1.95″~2.48″)
GHSS-2440 Hone Head: Hone bore diameter range from 61.97mm - 71.88mm (2.44″~2.83″)
GHSS-2800 Hone Head: Hone bore diameter range from 71.12mm - 90.42mm (2.80″~3.56″)
GHSS-3410 Hone Head: Hone bore diameter range from 86.61mm - 112.77mm (3.41″~4.44″)
GHSS-4410 Hone Head: Hone bore diameter range from 112.01mm - 140.72mm (4.41″~5.54″)
The GHSS Series Honing tools were developed for use in Sunnen or other brand Vertical Honing Machines.
The honing tools consist three to four sets of six or eight spring loaded stoneholders, which utilize Diamond or CBN abrasives.
GHSS-2800 Hone Head
Hone bore diameter from 71.12mm to 77.72mm, 77.47mm to 84.07mm, 83.82mm to 90.42mm.
By use 3 sets of different height stone holders for different bore diameter.
we can provide customized Honing Head according to your specific application.
Company Contact:
- Posted By: Shanghai Zhuyun Machinery Co., Ltd
- Phone: 18939787125
- Address: Shanghai fengxian north village road 159, shanghai , 上海 , China
- Email:
Published date: March 8, 2019
- Business Description: Honing Machine honing head Diamond Honing tools Vertical Honing Tools Standard honing tools Diamond Honing Tools Diamond Honing Stone CBN honing stone CBN honing tools progressive honing tools
