Electroplated Abrasive Belts - Taiwan

Brief Introductions: Type: Band Saw Blade

Bond: Electroplated

Application : Polishing, grinding steel, stone, glass, ceramics, mono crystalline silicon, polysilicon, zirconia, alumina, metal-nonmetallic synthetic materials, cemented carbide, aluminum magnesium alloy, aluminum beryllium alloy, titanium alloy and etc.

Specification: Customized

Brand Mark: Moresuperhard

Trade Terms: FOB

Packages: Hard carton

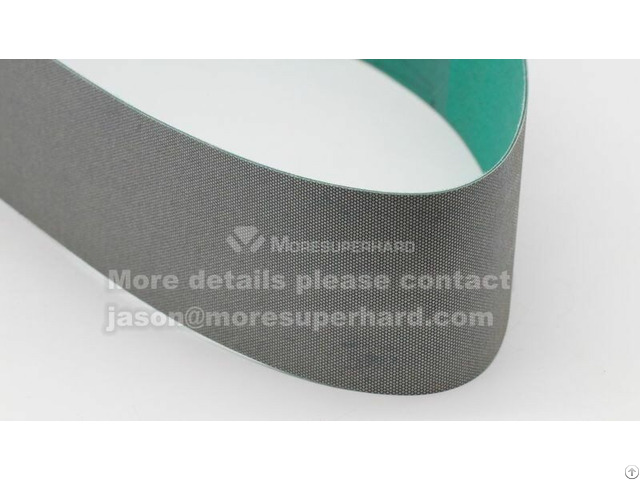

Delivery Time: 15 workdays by express Introductions of Moresuperhard’s Electroplated abrasive belts Diamond sanding abrasive belt is a kind of coated abrasive tool, which is super hard material (synthetic diamond) abrasive particles adhesive to the flexible base by bond.

And can be divided into metal nickel plating electroplated bond and resin bond, resin bond also consists flexible and hard type.

In some sense The grinding by diamond sanding belt for thermal spray coating industry can replace that of diamond grinding wheel and film polishing.

Diamond sanding belt can complete the grinding and polishing process.

Recently, it is widely used in thermal spray coating industry, the production and repair of hydraulic cylinder and turbine blade.

Length Width Girt (mm) (inch) (mm) (inch) #60, #100, #120, #200, #400, #800, #1500, #2000, #3000, #5000

150 – 5000 6” – 200” 5 – 350 1/5 “ – 14” Detailed Specifications can be customized! Advantages of Moresuperhard’s Electroplated abrasive belts

* More embedding depth, less exposure

* Grinding belt does not move parts

* Shortcomings: diamond particles are easy to fall off, do not require grinding allowance.

* Wet grinding effect is good Examples:

Workpiece diameter 400mm*12 HVOF spraying

Grinding machine model 65656

Belt speed 22 m/s (2800rpm)

Belt contact workpiece mode soft contact or hard contact

Workpiece rotation speed 30 RPM

Coolant water or others

Spray coating thickness 250μm

Original roughness of spray coating Ra 0.4mm-0.6mm

Machining allowance of spray coating 100μm

Coating thickness after processing 150μm

Company Contact:

• Posted By: Henan MoreSuperHard Products Co Ltd.

• Phone: +86037186545906

• Address: No.0906, 9F, Unit 2, No.11 Complex Building, No.171 Zhongyuan Middle Road, Zhongyuan District, Zhengzhou , + 86, Taiwan

• Email:

• Website: https://www.moresuperhard.com/

• Business Description: MORESUPERHARD is a professional manufacturer of grinding, cutting, polishing and dressing tools.

  Thanks to abundant experience in surface treatment, we design and offer a complete grinding and dressing solution to our customers in various industries.

  With innovative and creative development conception, MORESUPERHARD is tirelessly striving to provide excellent design, superior quality and perfect service to world-wide customers.

  More than 1000+ customers benefit from our professional technical services.
