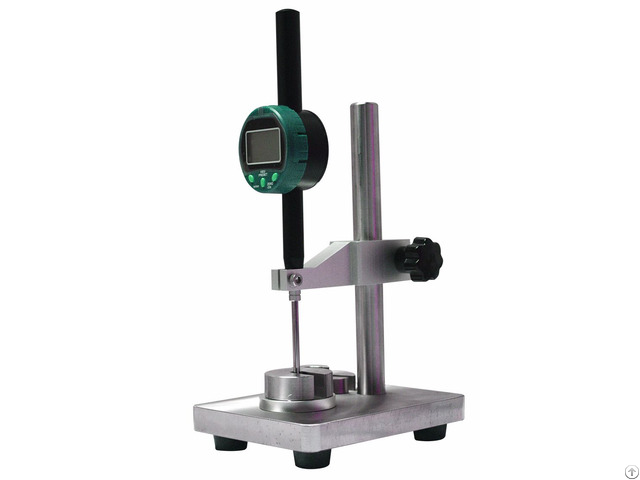

Electronic Textile Fabric Thickness Gauge - China
price: 1.00 Dollar US$
Fabric Thickness Gauge is an apparatus to measure the thickness of fabric, knitwear, film, rubber, soft urethane form.
Testing Standards:
JIS L1096/L1018, GB/T 3820, ISO 5084 Product Information:
Fabric Thickness Gauge has a complete assortment of the pressure-foot and weights to conform the different test-methods.
As Analogue type is suitable for general textile and floor carpets mainly, digital type is suitable for pile fabric and knitted cloth.
The other pressure foot area and weight for special purpose can be manufactured as the user's requirements.
Technical Parameters of Fabric Thickness Gauge:
1 - Measuring capacity (Standard-type): 0～10mm
2 - Min.
reading: 0.01mm
3 - Area of pressure (Standard-type): 20cm2(φ: 50.5±0.01mm)
4 - Measuring pressure: 0.3kPa (3gf/cm2), 0.7kPa (7gf/cm2), 1.0kPa (10.2gf/cm2)
5 - Access.
weight: 80g (for 0.7kPa), 144g (for 1.0kPa)
6 - Dimensions (approx.
): W120×D150×H200mm
Company Contact:
- Posted By: Qinsun Instruments Co., Ltd
- Phone: +862167800179
- Address: No.258 Banting Road, Songjiang District Gu Dai Road, Shanghai, SHANGHIA , Shanghai , China
- Email:
- Website: https://www.qinsun-lab.com
Published date: March 27, 2019
- Business Description: Qinsun Instruments Co., Ltd was founded in 2010, comprised of many experienced engineers and designers standing in the forefront of the industry.
Qinsun specialize in the research and development of high quality lab instrument for textile testing industry.
Our head office in Shanghai and we provide high quality testing instrument and comprehensive service for textile factory, academic research institute and textile lab worldwide.
Our Products:
- multi finger scratch tester
- electronic crockmeter rubbing fastness tester
- double cylinder launder ometer
- color fastness tester of textiles to perspiration
- scorch sublimation tester for color fastness to heat
