Diamond Backgrinding Wheel - China

Back Grinding Wheels Back Grinding Wheels Are Used For The Thinning And Fine Grinding Of The Silicon Wafer.

Name: Diamond Backgrinding Wheel

Application: Silicon Wafer

Send Inquiry

Service Telephone

+0086-371-86545906

Details

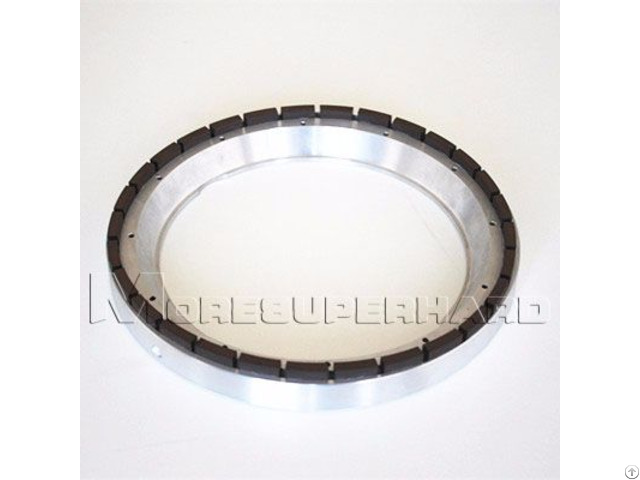

Diamond Back Grinding Wheels Are Used For Silicon Wafer Grinding.

Our Advanced Technology Makes Back Grinding Wheel Possible To Grind All Types Of Semiconductor Wafers With Less Subsurface Damage.

During Grinding, The Grinding Wheel And The Wafer Rotate About Their Own Rotation Axes Simultaneously, And The Wheel Is Fed Towards The Wafer Along Its Axis.

The Rotation Axis For The Grinding Wheel Is Offset By A Distance Of The Wheel Radius Relative To The Rotation Axis For The Wafer.

silicon wafer back grinding Applications Of Back Grinding Wheels:

Back Thinning, Rough Grinding And Fine Grinding Of Silicon Wafer.

Workpiece Processed Include Silicon Wafer Of Discrete Devices, Integrated Chips (IC) And Virgin Etc.

Advantages Of Back Grinding Wheels:

Good Self-Dressing Ability, Long Life And Low Prices.

High Heat Conductivity, High Wear Resistance, And Low Coefficient.

It Is Highly Desirable That Grinding Wheels Generate Only Very Low Damage To Ground Wafers.

Applicable Grinding Machine:

The Back Grinding Wheels Can Be Used For The Japanese, German, American, Korean And Other Grinders .

Such As Okamoto, Disco, Strasbaugh And Others Grinding Machine.

The Specification Of Diamond Back Grinding Wheels:

Model Diameter (Mm) Thickness (Mm) Hole (Mm)

6A2 back grinding wheels 6A2 175 30, 35 76

200 35 76

350 45 127

6A2T back grinding wheels 6A2T 195 22.5, 25 170

280 30 228.6

6A2T back grinding wheels 6A2T (Three Ellipses) 350 35 235

209 22.5 158

Other Size Can Ba Made According To Customers Requirements Whatsapp +8615617785923
