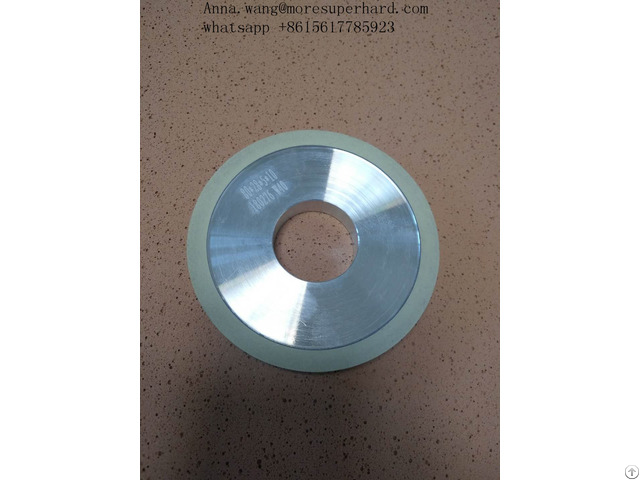

Ceramic Diamond Bruting Wheels

1A1 ceramic diamond bruting wheels are popular with natural diamonds bruting, grinding and polishing; it can also be used in grinding PCD & PCBN blades to replace PCD with PDC.

Compared to resin bonded grinding wheels and metal bond grinding wheels, ceramic diamond bruting wheels can process.

Specifications Of Diamond Bruting Wheels

Shape Material Grit size Application 1A1 SDC 180 180*10*32*10 For tools

1A1 SDC 320# 180*6*32*10 For Tungsten steel

11A2 SDC 100# 125*30*32*10*10 For Tungsten steel

11A2 SDC 180# 100*40*32*5*5 For Tungsten steel

1A1 SDC 150/200# 200*5/20*32*5/10 Grinding magnetic core

Punch machine SDC 180# 100*25*25.4*3*5 Punch machine

1A1 SDC 180# 50*3*10*5 Grinding magnetic core

1A1 SDC 300/600# 200*23*60*17.5*10 PCB

11A2 SDC 1500# 100*32*20*5*10 Universal grinding machines

3A1 SDC 1000# 135*15*31.75*2*10 PCB micro drill

11A2 SDC 150# 125*32*32*5*5 Wordcut tools

1A1 CBN 400# 205*12*31.75*8/10 Chrome steel cutting tools

We provide the standard GB / T6409.2-1996 resin bonding agent superhard material grinding wheel, diameter range: ф20 ~ 700mm, grinding wheel thickness: 5 ~ 300mm, abrasive grain size: 60/70 ~ W3.5 - And according to user requirements design and manufacture of non-standard abrasive.

Advantages Of Diamond Bruting Wheels

1 - Grinding efficiency, while grinding wheel consumption is relatively slow;

2 - Self-sharpening is good, the grinding heat is small, not easy to block, reducing the phenomenon of work burn when grinding;

3 - Wheel has a certain elasticity, is conducive to improving the surface roughness of the workpiece, mainly used for fine grinding, semi-fine grinding, knife grinding, polishing and other processes;

4 - Diamond resin wheel is low temperature curing, short production cycle, equipment and supply process is relatively simple; due to the resin with mobility, easy to shape the surface of the grinding wheel.
