Carbide Shoe Honing Tools - China
price: 1.00 Dollar US$

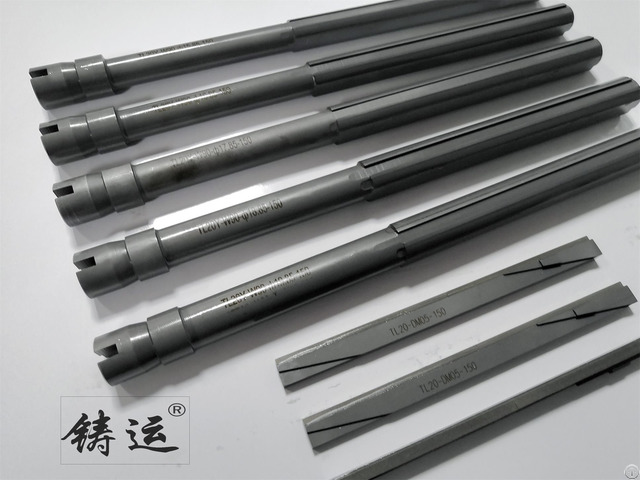

Carbide shoe mandrels are recommended to be used for high-production situations.
The mandrels can be either carbide inserts or full carbide shoe mandrels.
They last longer than standard honing tools.
Shanghai Zhuyun Machinery Co., Ltd. offers a variety of honing tools with high precision, longer tool life and rationalization for a wide range of applications and honing machines.
Aperture from 2.5 to 32mm
Opening
Blind hole
Interrupted pupil
Series hole
Almost all processed materials.
The Sunnen alternative honing mandrel is 100% replaceable.
K series (K3 - AK20, aperture range from 2.54mm to 25.48mm)
BL series (BL3 - BAL20, inner diameter range 2.54mm to 26.19mm)
L series (L6 - AL20, aperture range from 2.54mm to 26.19mm)
Y series mandrel.
Diamond insert mandrel
Extra long mandrel with extended handle
S = soft shoe steel mandrel for honing most materials.
H = hardened steel steel mandrel for the production of hard, rough parts, hard alloys, ceramics, glass honing.
B = bronze mandrel for the production of very fine finishes and grinding of exotic metals.
Company Contact:
- Posted By: Shanghai Zhuyun Machinery Co., Ltd
- Phone: 18939787125
- Address: Shanghai fengxian north village road 159, shanghai , 上海 , China
- Email:
Published date: March 8, 2019
- Business Description: Honing Machine honing head Diamond Honing tools Vertical Honing Tools Standard honing tools Diamond Honing Tools Diamond Honing Stone CBN honing stone CBN honing tools progressive honing tools
