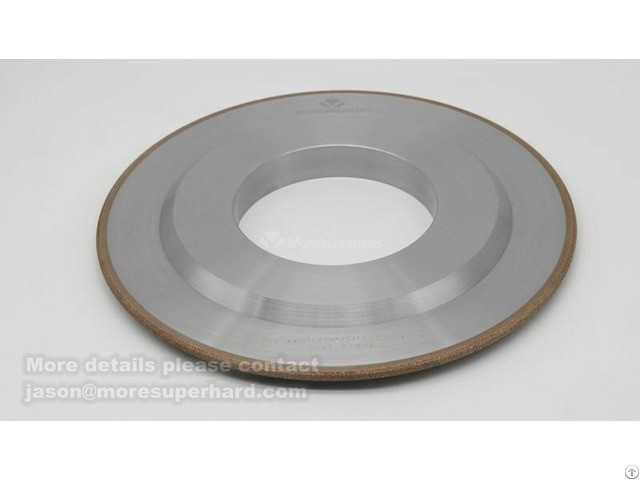

14ff1 Metal Diamond Grinding Wheels For Machining Carbide Rolls - Taiwan

Brief Introductions: Type: 14FF1

Bond: Metal

Application: Carbide rolls

Specification: Customized

Brand Mark: Moresuperhard

Trade Terms: FOB

Packages: Hard carton

Delivery Time: 15 workdays by express Introductions of Moresuperhard’s Metal diamond grinding wheels Diamond tipped bandsaw blade refers to a kind of diamond tools made by consolidating diamond particles on the sedimentary layer through electro crystallization of metal on the optimized annular base band by using a unique electrodeposition process.

Electroplated diamond coated bandsaws are made from high quality steel with the leading edge coated with good quality diamond grit giving a continuous ribbon of aggressive cutting action on Silicon ingot, GRP, glass reinforced plastics, carbon fiber, plastic composites and so on.

Both straight cut and curves can be easily achieved, bearing in mind the tighter the curve required, the narrower width of bandsaw needed.

Smallest cutable radius (mm) 16 40 65 95 145 185 305

Band Height (mm) 6 10 12 15 20 25 30 Detailed Specifications can be customized! Advantages of Moresuperhard’s Metal diamond grinding wheels

– Excellent cutting surface

– The highest level of precision at high cutting speeds and performance

– High efficiency: cutting hard alloy, marble, granite speed is dozens of times the efficiency of the traditional reciprocating saw or wire cutting machine

– High economic efficiency: because of its narrow incision (only 1.2mm-2mm), so less material consumption, less dust, low noise, cutting precious materials, especially has greater economic significance.

– Good cutting quality: the working part of the saw blade, that is, the thickness of the diamond blade is greater than the thickness of the matrix steel strip.

With the help of the guide device, the saw blade does not contact with the surface, which is conducive to obtaining more stable sawing and higher processing quality.

– Especially for particularly difficult sawing carbon graphite and other materials, some materials bimetal saw blade saw not moving, alloy saw blade life is not long, the cutting surface is not smooth, for emery saw blade, is the best choice.

Guide:

1 - Band Saw Blade Cross Section

Cross section should be specified as wide and as thick as possible (as the application will allow).

Please note the diameter of the pulley.

Steel band thickness should be in the range 1: 1000 with respect to the diameter of the pulley.

Band height is determined by the type of cut.

For straight cuts, specify the maximum possible band height.

For contours, band height should be selected as follows: 2 - Diamond Mesh/Grit Size

Recommended diamond size will vary depending on application.

Primary factors to determine proper diamond size include:

* Desired surface finish

* Desired cutting speed

* Cutting characteristics of material

* Cutting width

* Machine parameters

Long chipping materials should be cut with coarser diamond size band saw blades.

All diamond band saw blades are custom manufactured to fit your exact material, needs, and application requirements.

We will work with you to determine your needs, and recommend the right parameters for your specific material / application.

3 - Cutting Edge / Tooth shape

In principle, continuous rim diamond band saw blade can be used of cutting all materials.

The cutting edge is recommended for thin walled a delicate material.

If segmented band saw blade design is used, there should always be two teeth simultaneously engaging the material.

The advantages of segmented design are better transport of coolant and better chip removal, with softer, long chipping materials.

However, the surface finish on the material is somewhat rougher.

Service: – Detailed Specifications can be customized!

– Provide after-sales service.

– Technical support on usage.

– Return and exchange of products for non-human reasons.

About us:

MORESUPERHARD is a professional manufacturer of grinding, cutting, polishing and dressing tools.

Thanks to abundant experience in surface treatment, we design and offer a complete grinding and dressing solution to our customers in various industries.

With innovative and creative development conception, MORESUPERHARD is tirelessly striving to provide excellent design, superior quality and perfect service to world-wide customers.

More than 1000+ customers benefit from our professional technical services.
