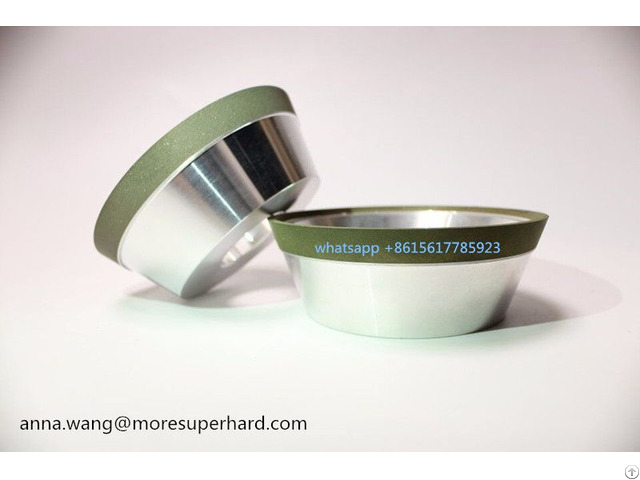

11v9 Resin Bond Diamond Grinding Wheel - China

CBN Cup Grinding Wheel (11V9) 

Detailed introduction to resin diamond grinding wheel:

Description of the resin diamond grinding wheel: The resin bond diamond wheels are mainly used for grinding tungsten carbide and non-metal materials.

Various kinds of dimensions and shapes are available, such as flat shapes, cup shapes and dish shapes, etc.

Application of the resin diamond grinding wheel: Rough diamond polishing, PCD/PCBN tools grinding, Tungsten carbide grinding, Glass grinding Specification

D T H W X

75 30 20 2 10

75 30 20 3 10

100 35 20 2 10

100 35 20 3 10

125 40 20 2 10

125 40 20 3 10 Advantages:

1 - high-new technology

2 - High working efficiency;

3 - Amazing performance;

4 - Competitive price;

5 - Various types and sizes available;

6 - Considerate after-sell service.

7 - Manufacturer direct sell.

T H W X V° Specification for tungsten carbide TN Stock Specification for HSS TN Stock

Application:

-11V9 diamond grinding wheel used for sharpening and finishing of back and side surface of hard alloys.

*The abrasive layer of the 11V9 diamond &CBN grinding wheels can be synthetic diamond powder and CBN in resin, metal or vitrified bonds.

D (mm) X (mm) U (mm) H (mm) T (mm) E (mm) K (mm) J (mm)

50 1, 5 · 2 6 · 10 Up on request 30 10 20 28 3 6 · 10 30 10 20 28

75 1, 5 · 2 6 · 10 30 10 40 53 3 6 · 10 30 10 40 53

95 3, 2 6 · 10 35 10 55 70

100 1, 5 · 2 6 · 10 35 10 55 75 3 6 · 10 35 10 55 75

125 1, 5 · 2 6 · 10 40 10 · 12 75 96 3 6 · 10 40 10 · 12 75 96

150 1, 5 · 2 6 · 10 50 10 · 12 90 114 3 6 · 10 50 10 · 12 90 114

Standard S =70° 45° < S < 70° - possible
