Welded Band Saw Blades - China

Bandsaw Blades Detail

Product Name : Bimetal Band Saw Blade

Material : M42, alloy steel etc.

Width*Thickness: 3mm*0 - 6mm, 13*0.9mm, 20mm*0.9mm, 27mm*0.9mm, 34mm*1.1mm, 41*1.1mm, 41mm*1.3mm, 54mm*1.6mm, 67mm*1.6mm

Length customized as your request or by coils

Max length: 500 thousand meters

Usage : Metal Cutting How To Select The Correct Band saw Blade

band saw blade has a high speed edge material that has been electron beam welded to a fatigue resistant spring backing.

If you are cutting in a production setting, you will want to use a bi-metal band saw blade that will cost more but is more economical in the long run.

band saw blade is used to cut carbon steel, tool steel, structural steel, stainless steel, pipes and tubes, die steel, angles and flat stock, and mixed metals

Tooth Selection (TPI)

Band saw tooth size is determined by the size and type of material to be cut and the desired finish.

Select a tooth per inch (TPI) based on the charts below.

Find material dimensions on bottom of chart and move up for appropriate teeth per inch.

Diameter 20mm-30mm 30mm-50mm 50mm-80mm 80-200mm 200-300mm

TPI 8/12 6/10 5/8 4/6, 3/4 2/3 Advantage

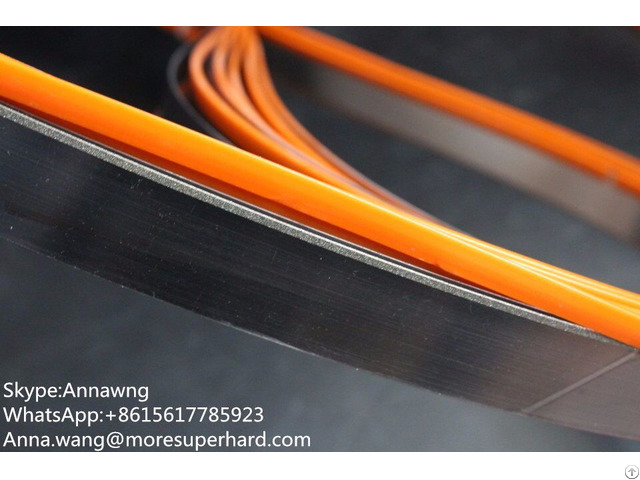

Using high quality grit electroplated to the blade edge - NIABRAZE provides a diamond band saw blade that can offer precise cutting, minimal material loss, and superior band life.

Regardless of what material you’re cutting - quartz, glass, carbon, silicon, ceramics, or composites = our specially formulated steel backing will lend exceptional strength and flexibility to you diamond band saw blade.

All blades are cut and welded to customer specification with a weld guarantee that lasts the life of the blade.
